WLDH-500
Karvil
Customizable Design

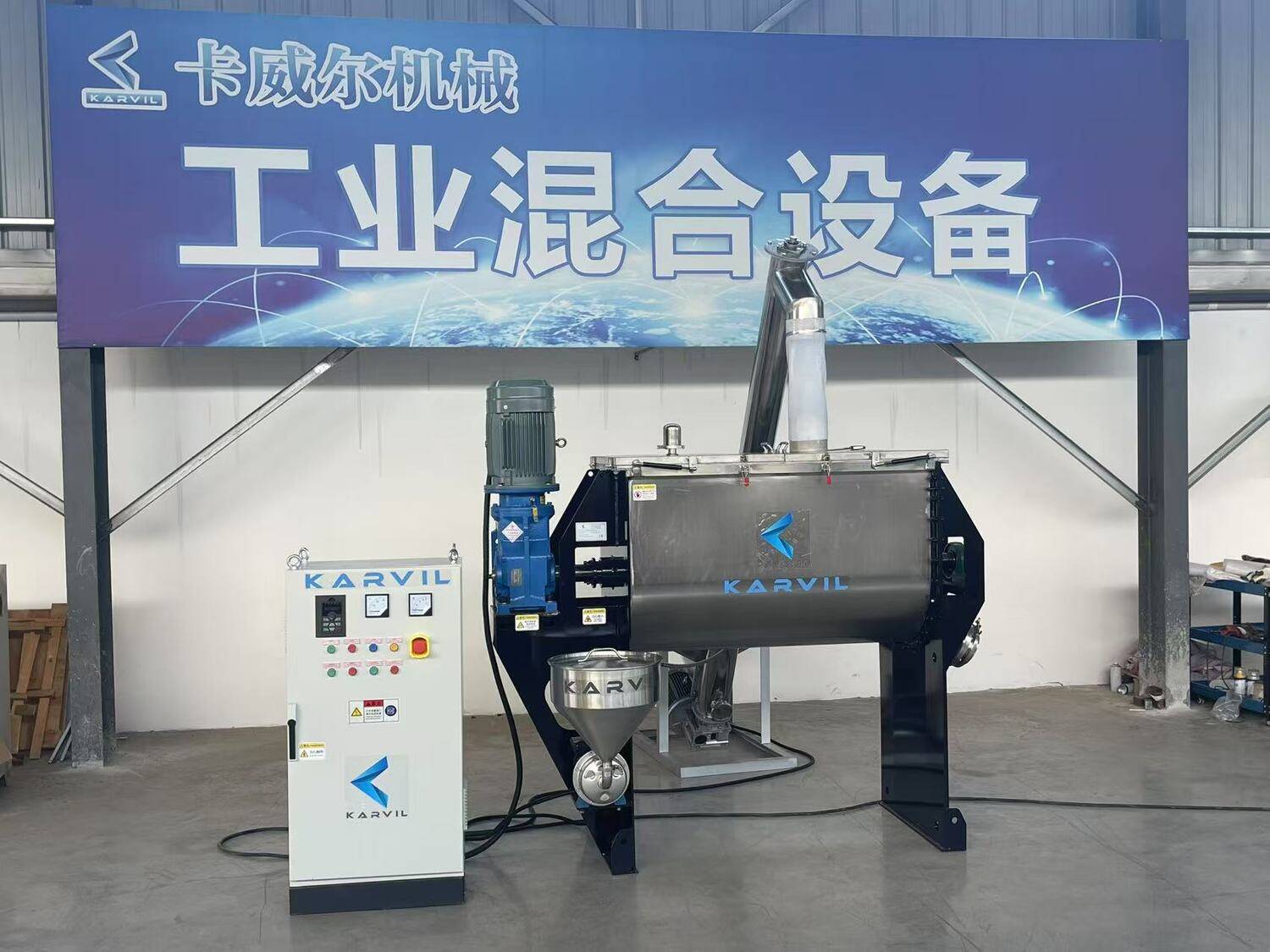

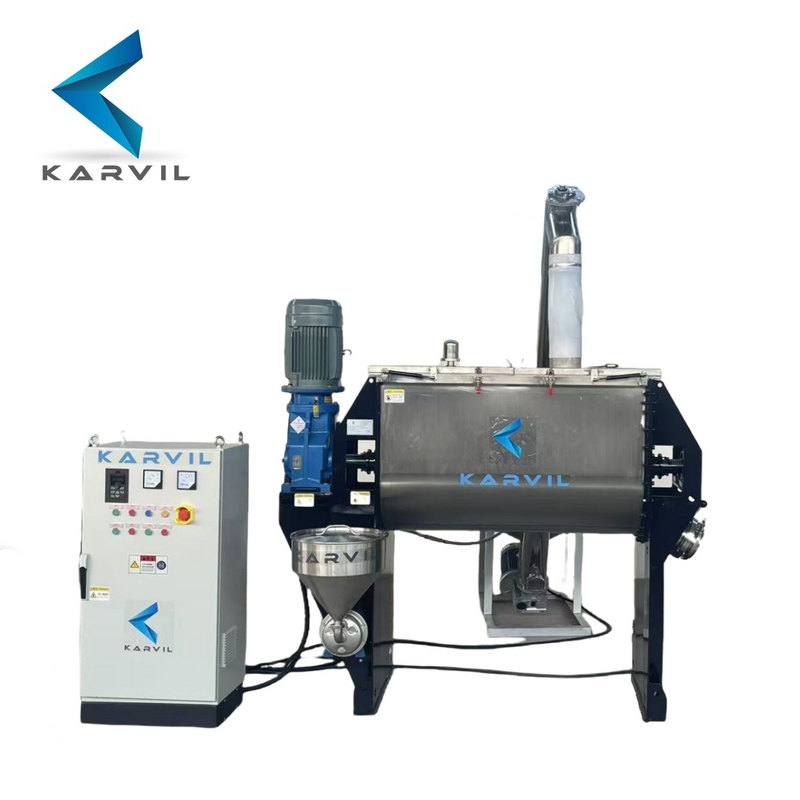

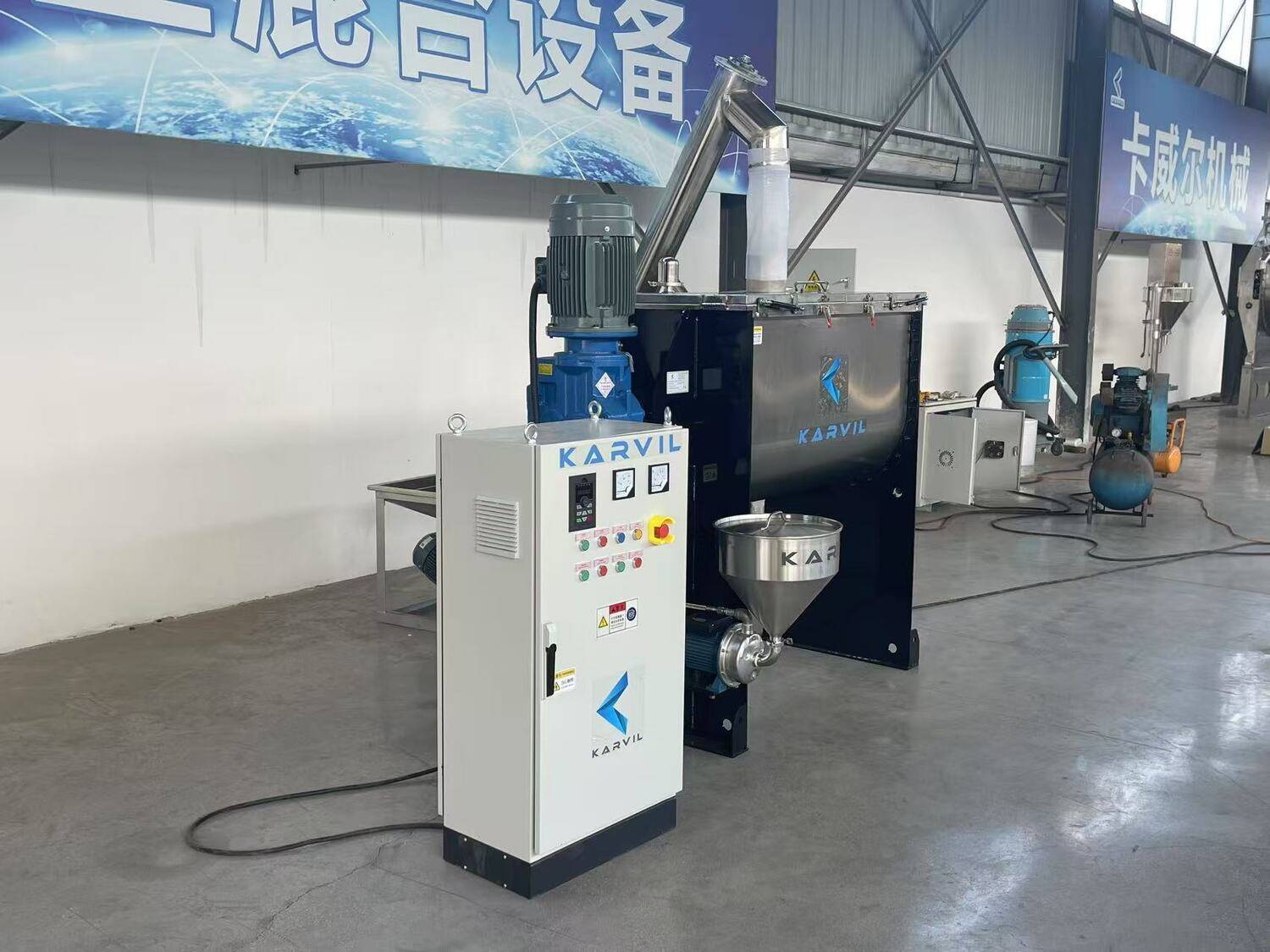

The Karvil 500L horizontal ribbon mixer is built for efficient and uniform blending of refractory powders and additives. With stainless steel contact parts (SS304) and a sturdy carbon steel frame, it combines durability with safe, contamination-free processing.
The mixing shaft is driven by a variable speed motor (0–46 r/min) with inverter control, allowing fine adjustment for different material types. PTFE packing seals provide reliable shaft sealing to prevent leakage during operation.
To meet the demands of formulations that require liquid addition, the mixer is fitted with a spray system featuring two nozzles and a 1.5 kW pump. A safety grid and dust collector are included to ensure a clean and secure working environment.

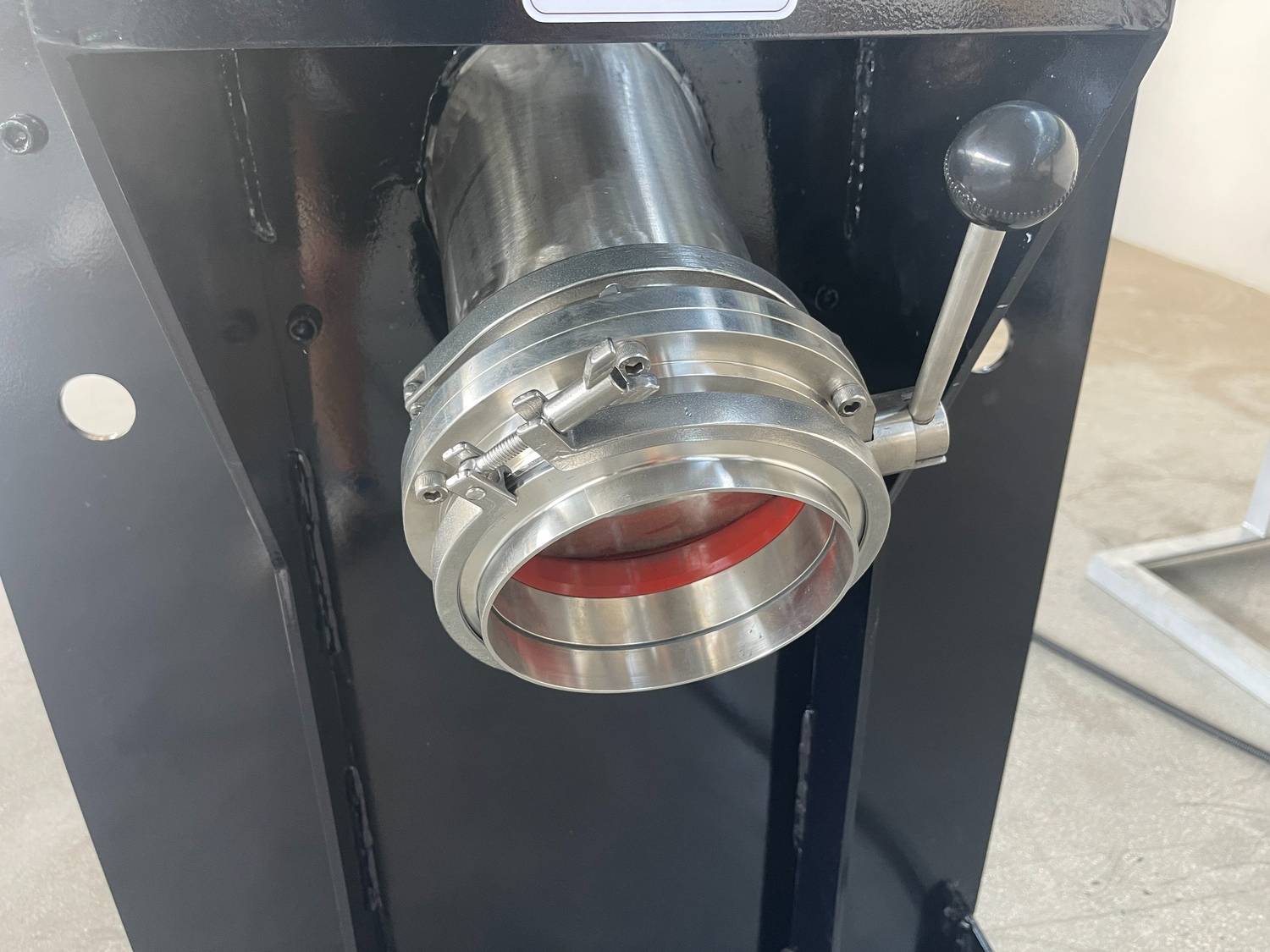

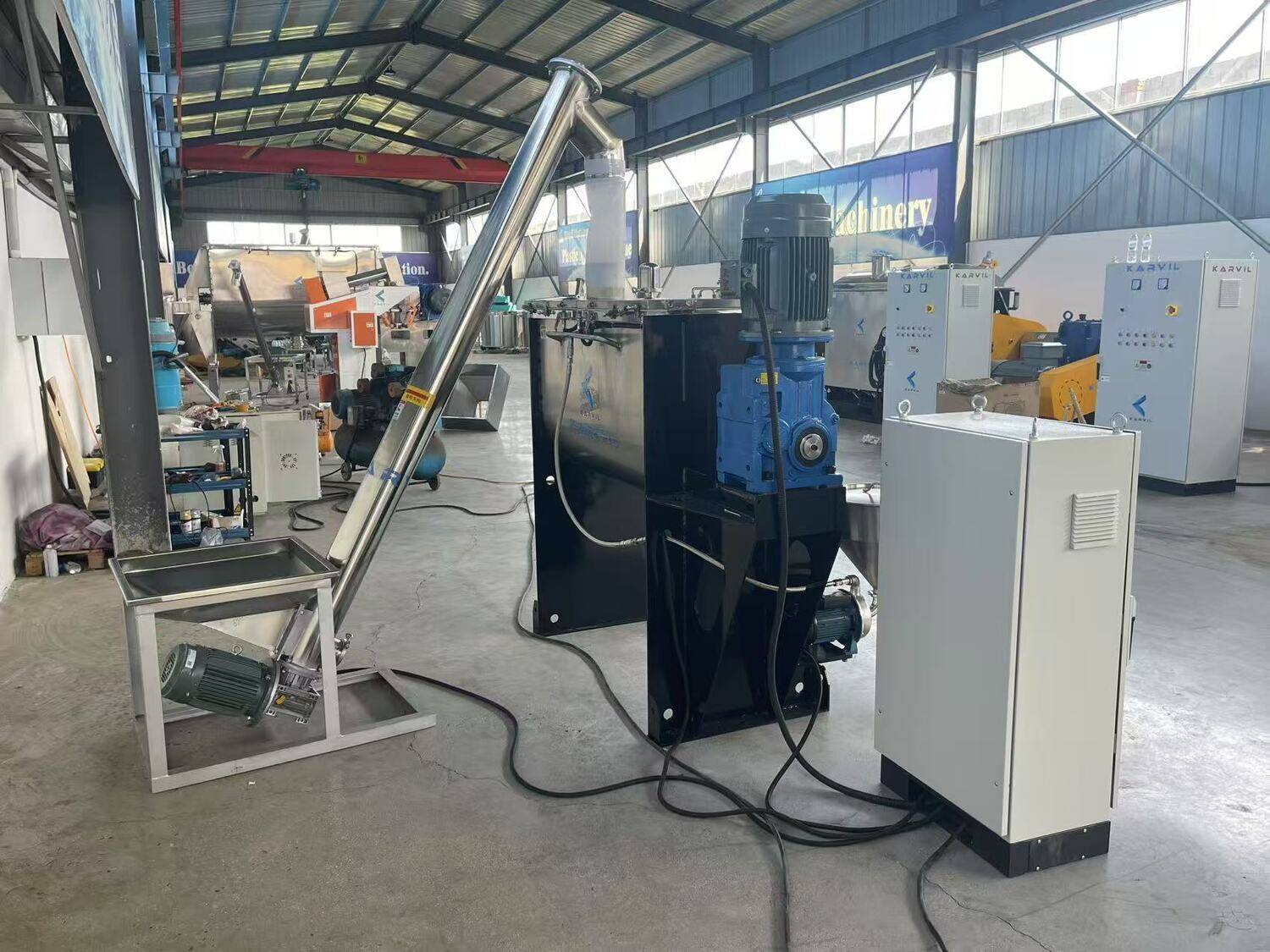

For easy discharge and transfer, the unit uses a side outlet with a manual butterfly valve, feeding into a 30 L stainless steel hopper with a cover. From there, a screw conveyor lifts materials up to 2 meters, making it ideal for integration with downstream equipment such as packaging or molding systems.
Precise Blending – Ribbon agitator ensures even distribution of powders and binders.
Liquid Integration – Built-in spray system for moisture or binder addition.

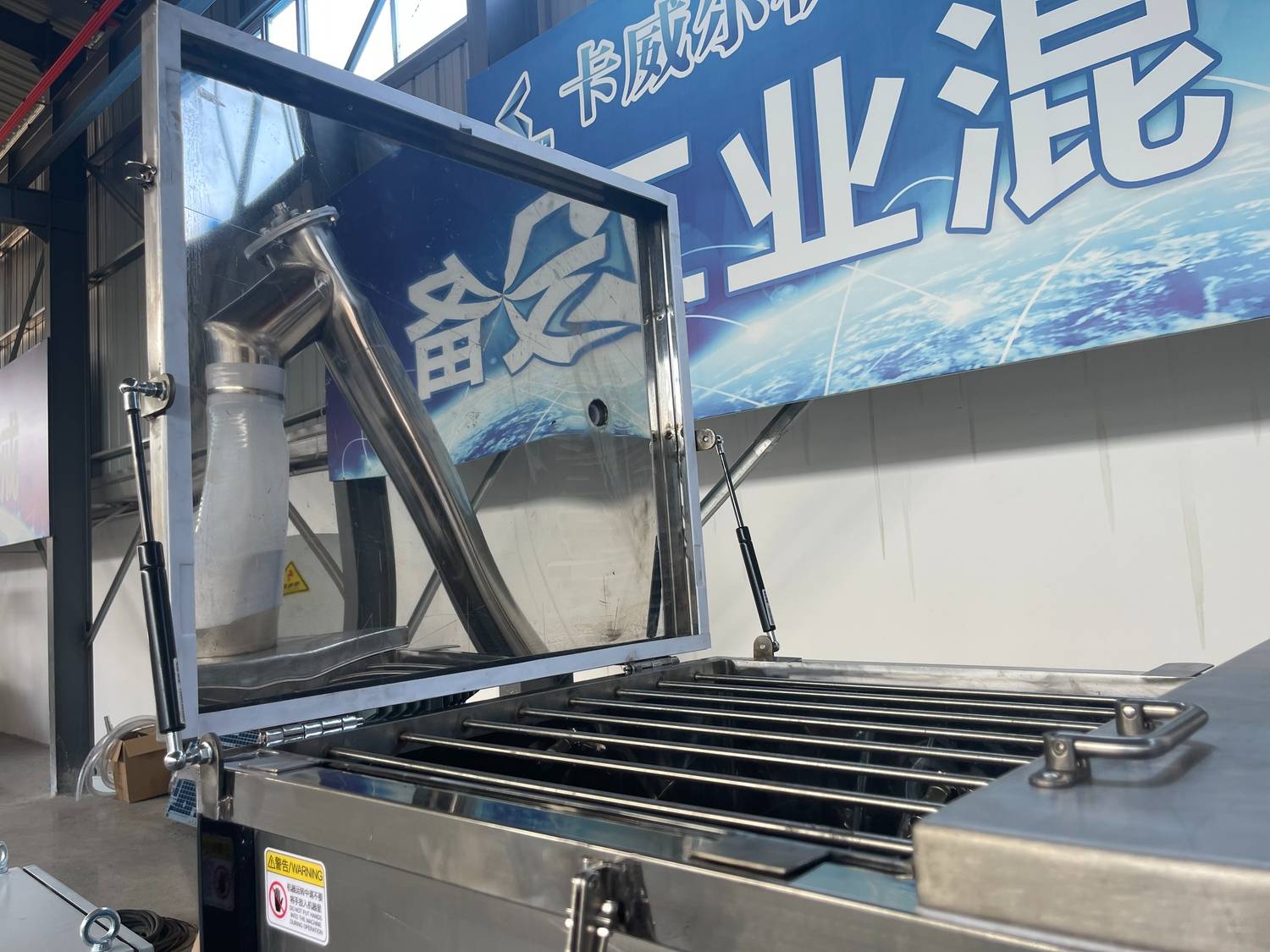

Dust Control – Equipped with safety grid and dust collector.
Strong & Reliable – Stainless steel contact surfaces with heavy-duty frame.
Easy Transfer – Integrated screw conveyor for smooth material discharge.
FAQ
1. What materials is this machine suitable for?
It is suitable for refractory powders, additives, and similar dry or granular materials.
2. Can liquids be added during the mixing process?
Yes, it is equipped with two nozzles and a 1.5 kW spray pump for uniform liquid injection.
3. Is the speed adjustable?
Yes, the spindle speed ranges from 0–46 rpm, controlled by a frequency converter.
4. Is it dust-proof?
Yes, it is equipped with a safety screen and dust removal device.
5. What is the discharge method?
The discharge is via a side manual butterfly valve and a screw conveyor with a lifting height of 2 meters.
6. Which parts are made of stainless steel?
All parts that come into contact with the material are made of SS304 stainless steel.
