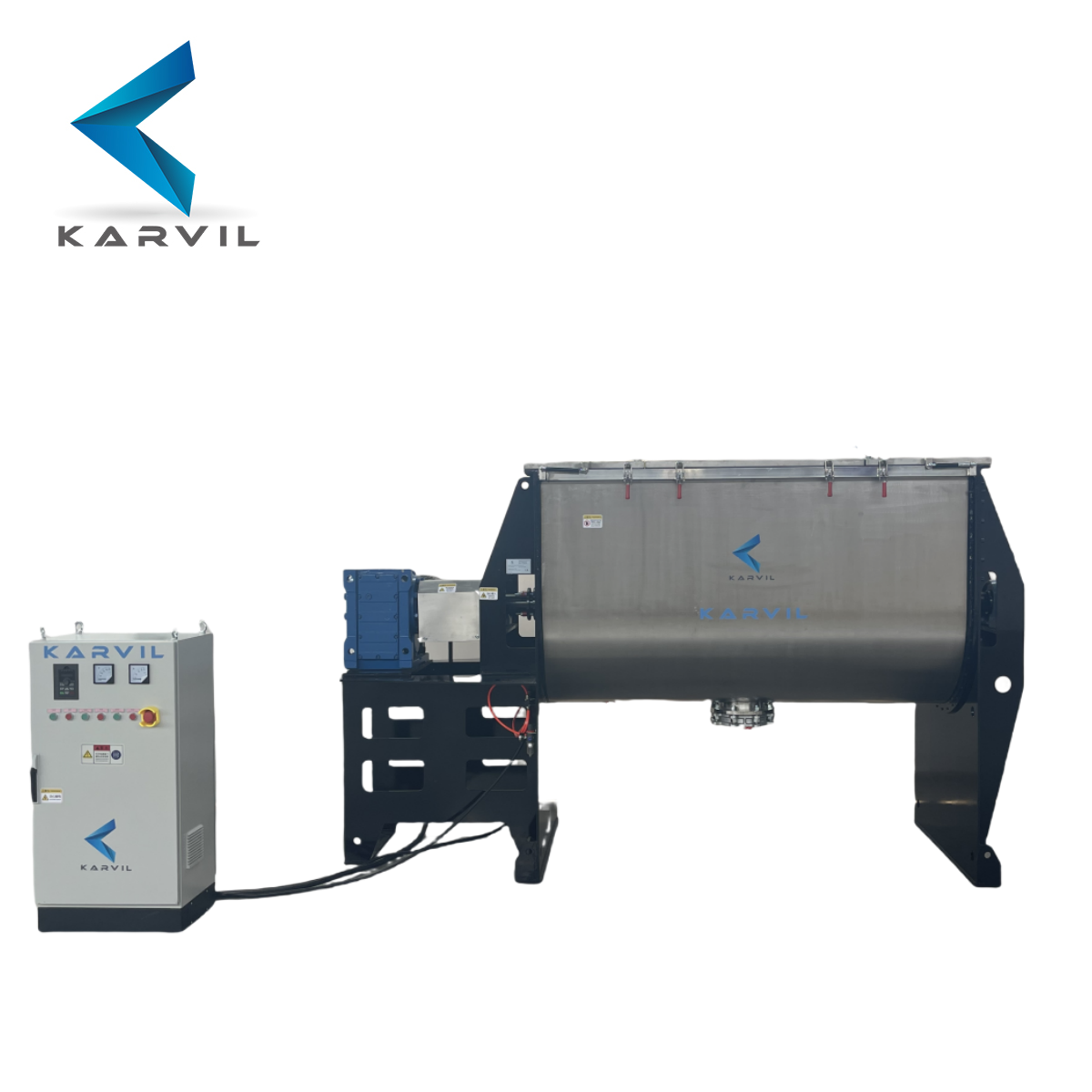

Horizontal Ribbon Blender

Karvil 2000L horizontal ribbon blender customzied for a customer to process mineral salts with high efficiency, hygiene, and safety. Engineered with a focus on gentle yet thorough mixing, the blender features mirror-polished SS304 contact surfaces, variable speed control, and a pneumatic discharge valve that ensures zero material retention at the bottom.

Whether you’re blending powders, granules, or free-flowing mineral ingredients, the ribbon mixer delivers uniform results with minimal operator intervention.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • WLDH-2000

Customizable Design

  • The mixer can be made with all stainless steel or materials contact part with stainless steel or all carbon steel.

  • Interior Surfaces: Mirror polished.

  • Discharge: Manual valve or pneumatic valve.

  • Safety device:Safety grid on the cylinder. Emergency stop device when the lid is open while the safety grip is not on the cylinder

  • Heating function ( optional): Electric heating with jacket for heating transfer oil; Jacket for steam; Jacket for water circulation.

  • Cooling function( optional): Jacket for cooling water circulation or equipped together with a chiller.

  • Vacuum function( optional): it includes vacuum pump, metal hose, buffer tank and vacuum gauge. Vacuum degree can reach-0.096mpa.

  • Other customized function can be discussed.


图片45图片46



Specifications:


  • Total Volume: 2000 Liters

  • Mixing Type: Horizontal Ribbon Mixing

  • Main Shaft Speed: 0–35 rpm, frequency controlled

  • Material (Contact Part): SS304 stainless steel, mirror polished interior

  • Discharge: Pneumatic bottom valve (DN200), no material retention

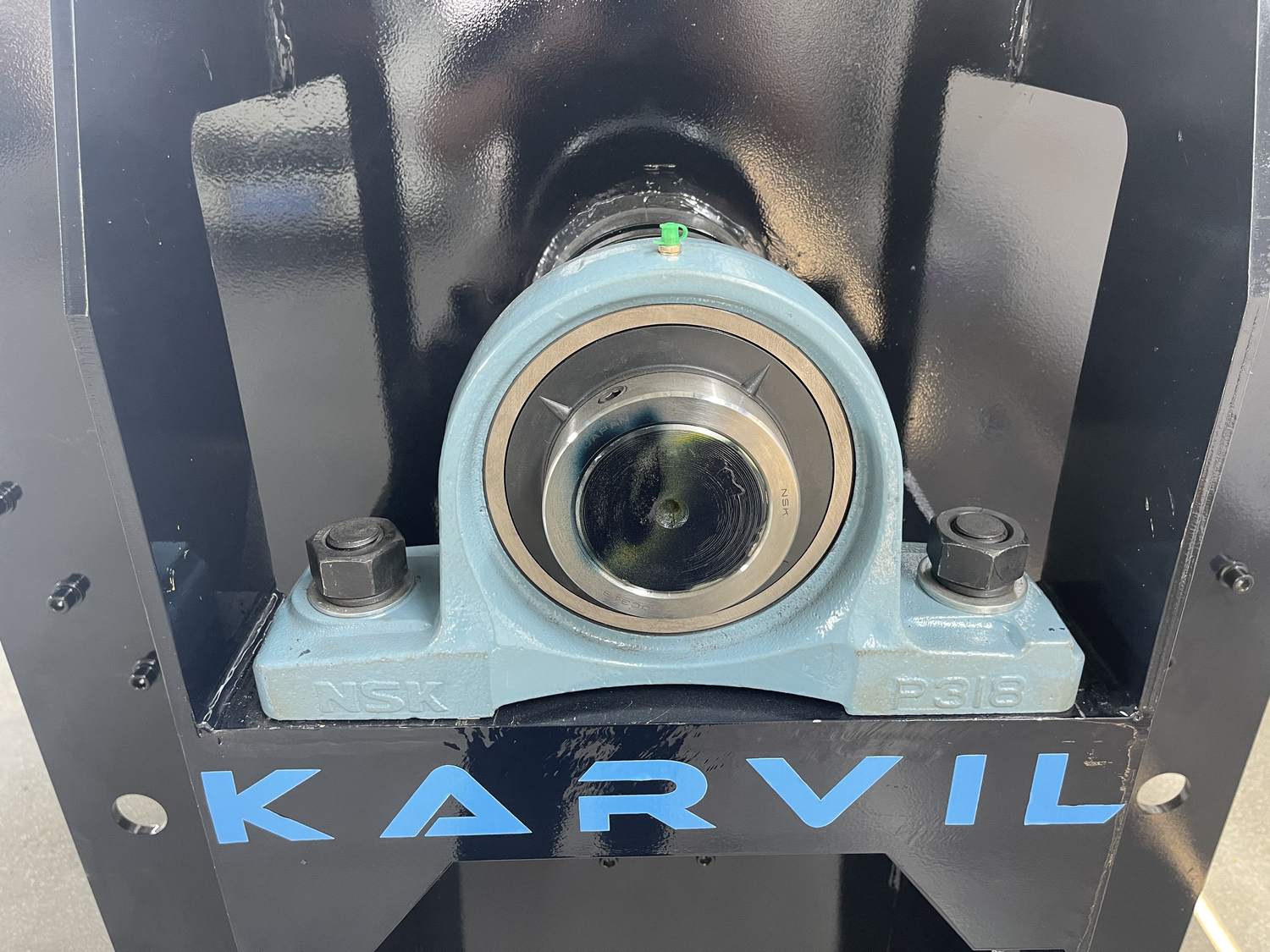

  • Bearings: NSK

  • Safety Protection Smart safety grid logic:

If grid in place → mixer can run even if lid open

If grid displaced → mixer stops when lid is open

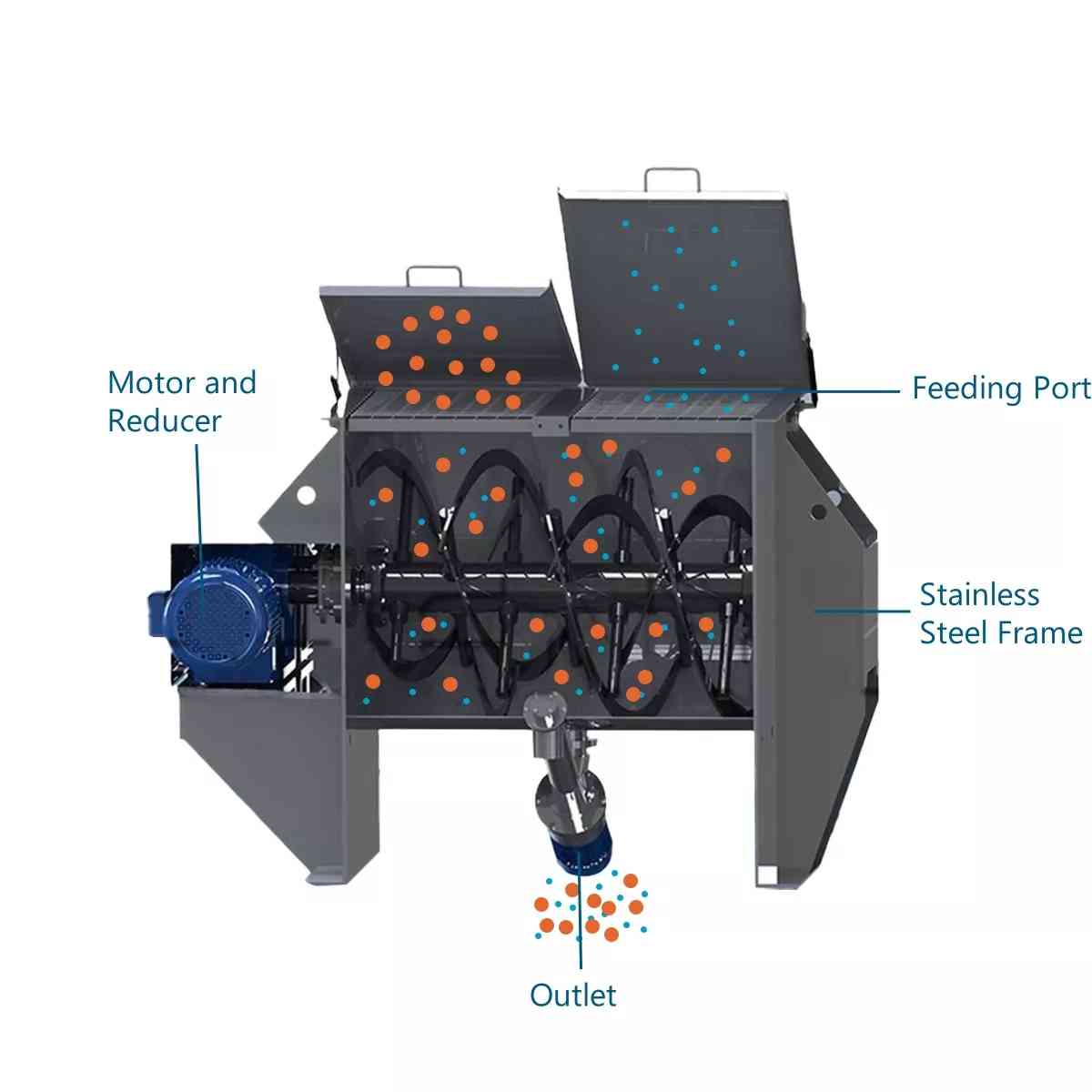

Horizontal-Ribbon-Blender-with-Screw Feeder -


Technical Parameters



FAQ

1: Is this ribbon mixer suitable for fine powders or crystals like mineral salts?
A: Yes. The gentle and efficient ribbon movement ensures uniform blending of powders, granules, and crystalline substances without breaking particle structure.

2: How is the machine cleaned after use?
A: The internal surface is mirror-polished to prevent powder adhesion and facilitate quick cleaning. Bottom discharge also ensures no material build-up inside the tank.

3: What safety features are built into the system?
A: The mixer features a smart safety grid system. It allows safe operation with the lid open only when the grid is correctly positioned. If the grid is removed or displaced, the mixer shuts down immediately upon lid opening.

4: Is the discharge fully clean with no dead corners?
A: Yes. The design includes a DN200 pneumatic valve at the bottom, engineered to avoid residue and ensure full product evacuation.

5: Can the speed be adjusted for different types of materials?
A: Absolutely. The mixer is equipped with a frequency inverter allowing precise speed adjustment depending on product density and mixing requirements.
