Food Grade Horizontal Ribbon Blender

  • Capacity: 300L total volume

  • Drive System: Siemens motor (4kW) with frequency inverter, allowing adjustable mixing speeds from 0 to 63 rpm

  • Material Contact Surface: Full SS304 with mirror polish, ensuring low residue and easy cleaning

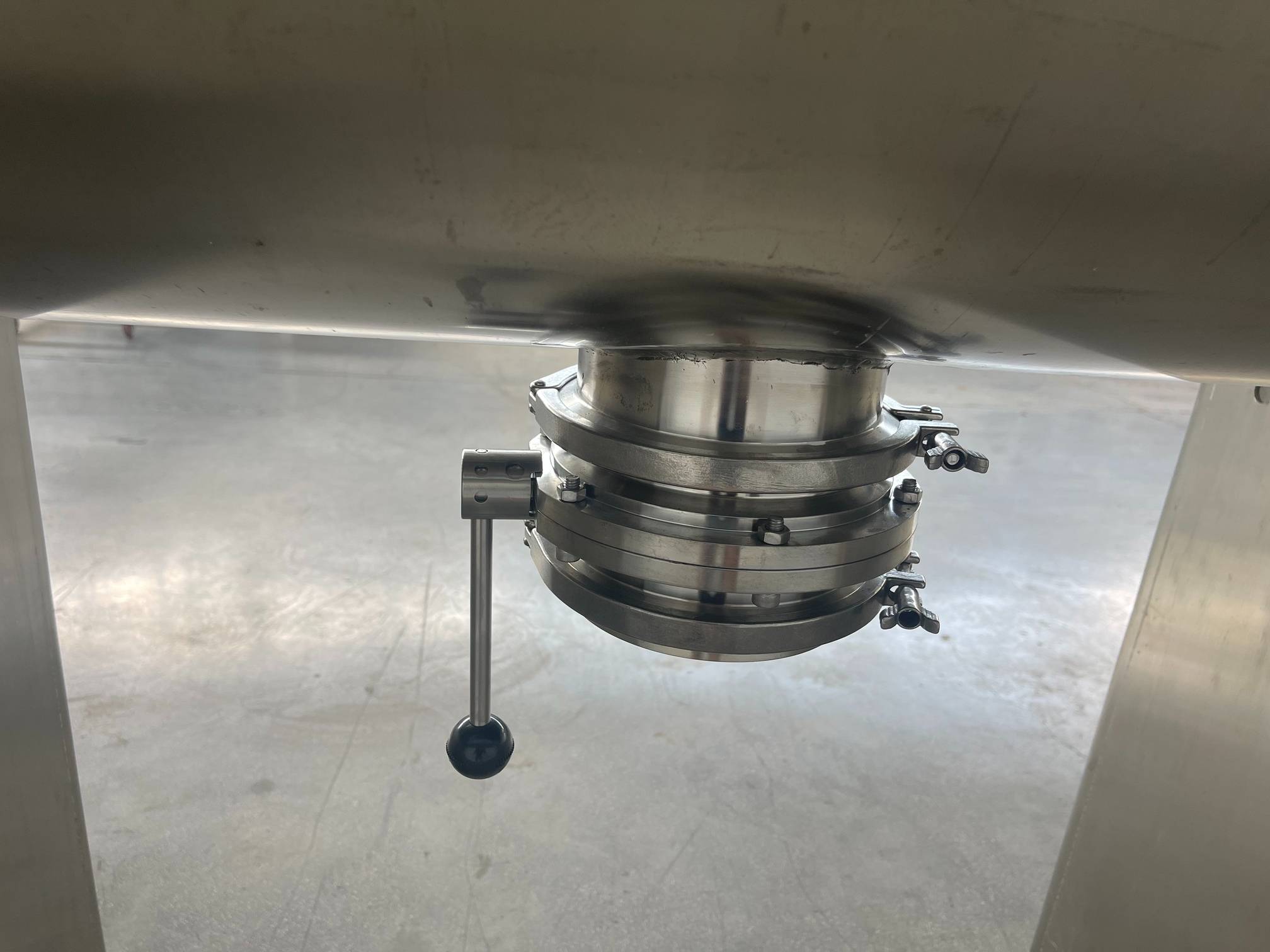

  • Discharge: Bottom outlet via manual butterfly valve (DN150)

  • Smart interlock safety logic:

    • If the mesh guard is correctly positioned, mixing continues even with the lid open

    • If the guard is removed or misaligned, operation halts automatically when the lid is open

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • WLDH-300

  • Karvil

Customizable Design


Food - Grade Horizontal Ribbon Blender

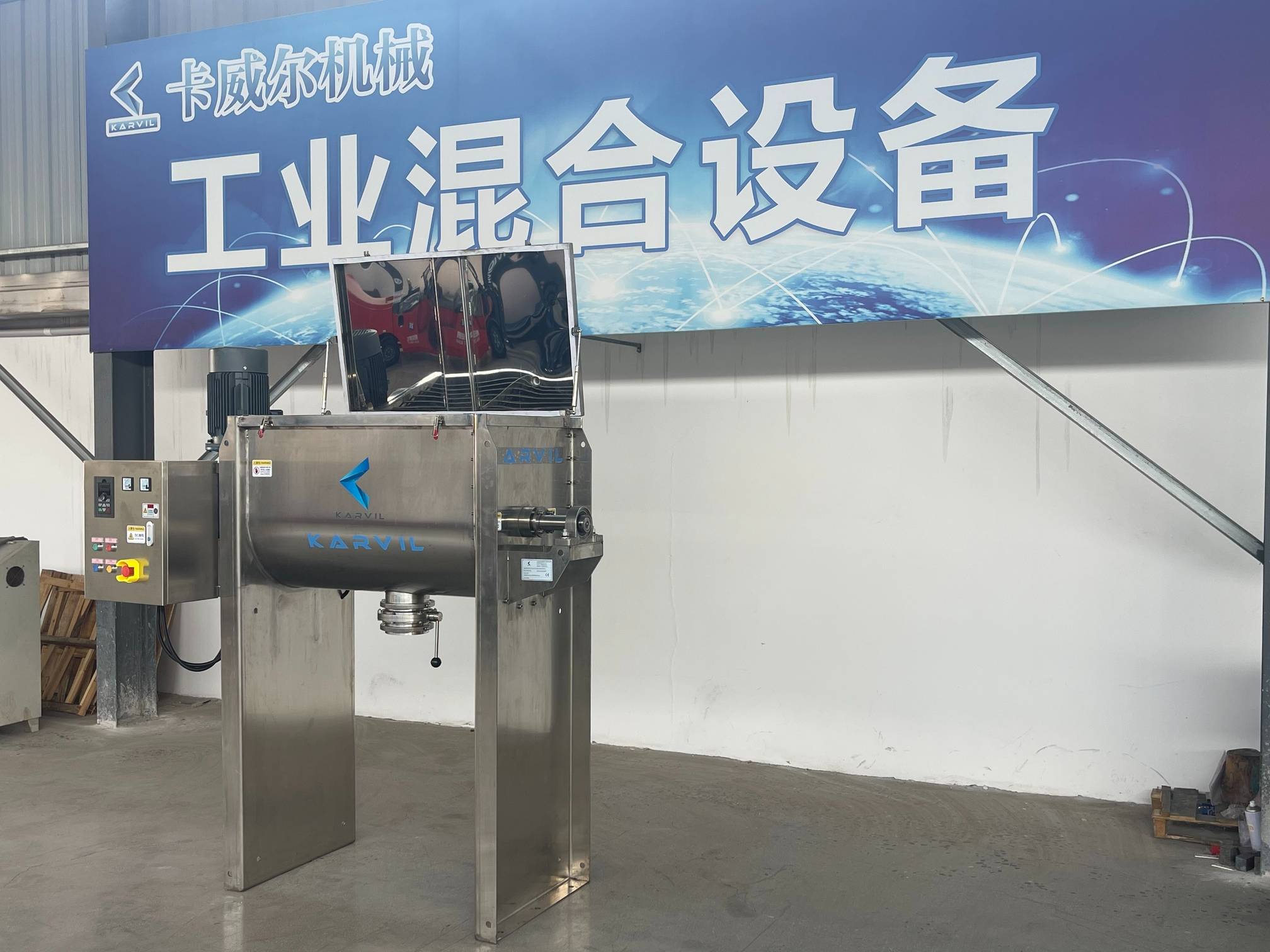

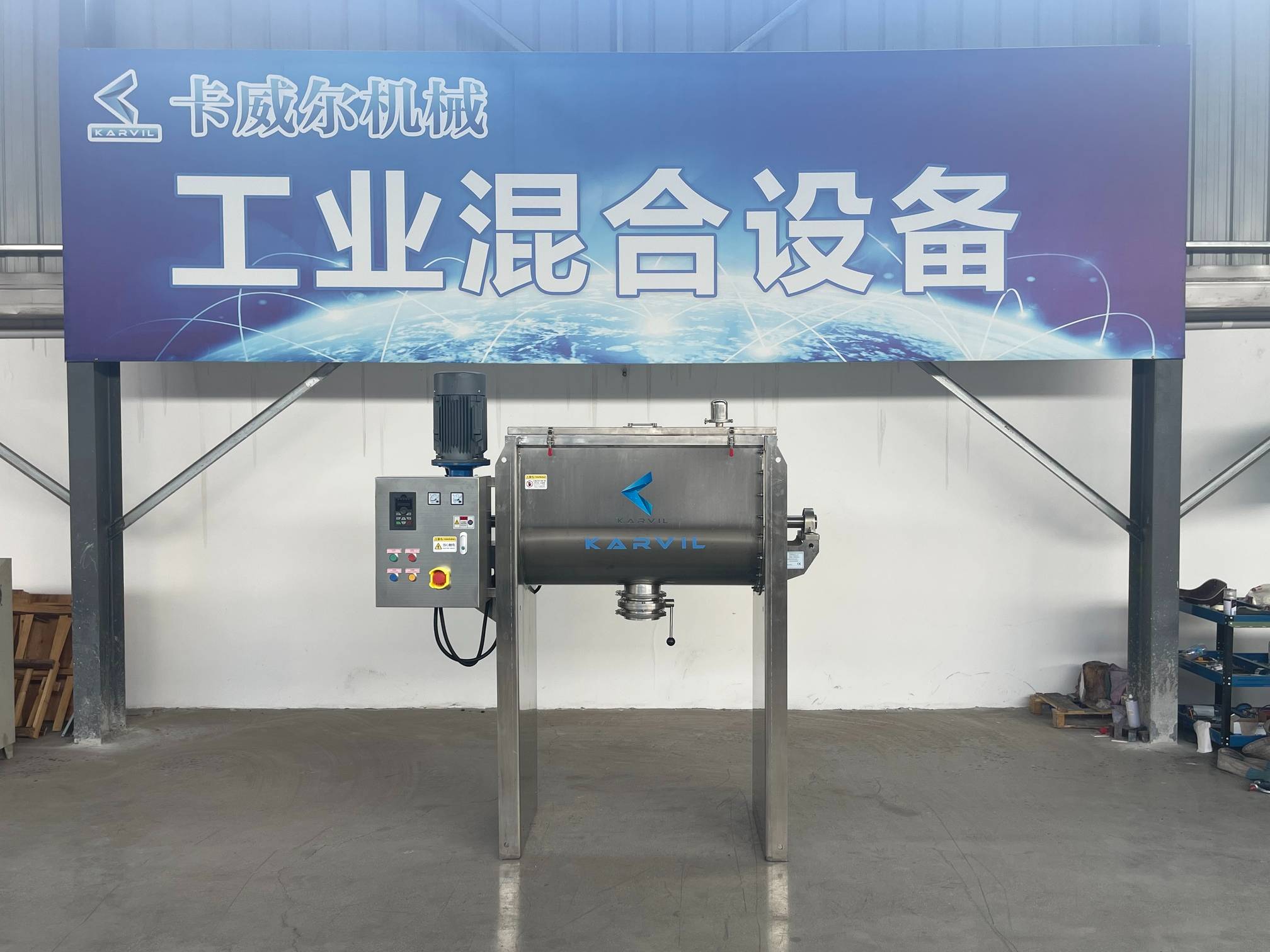

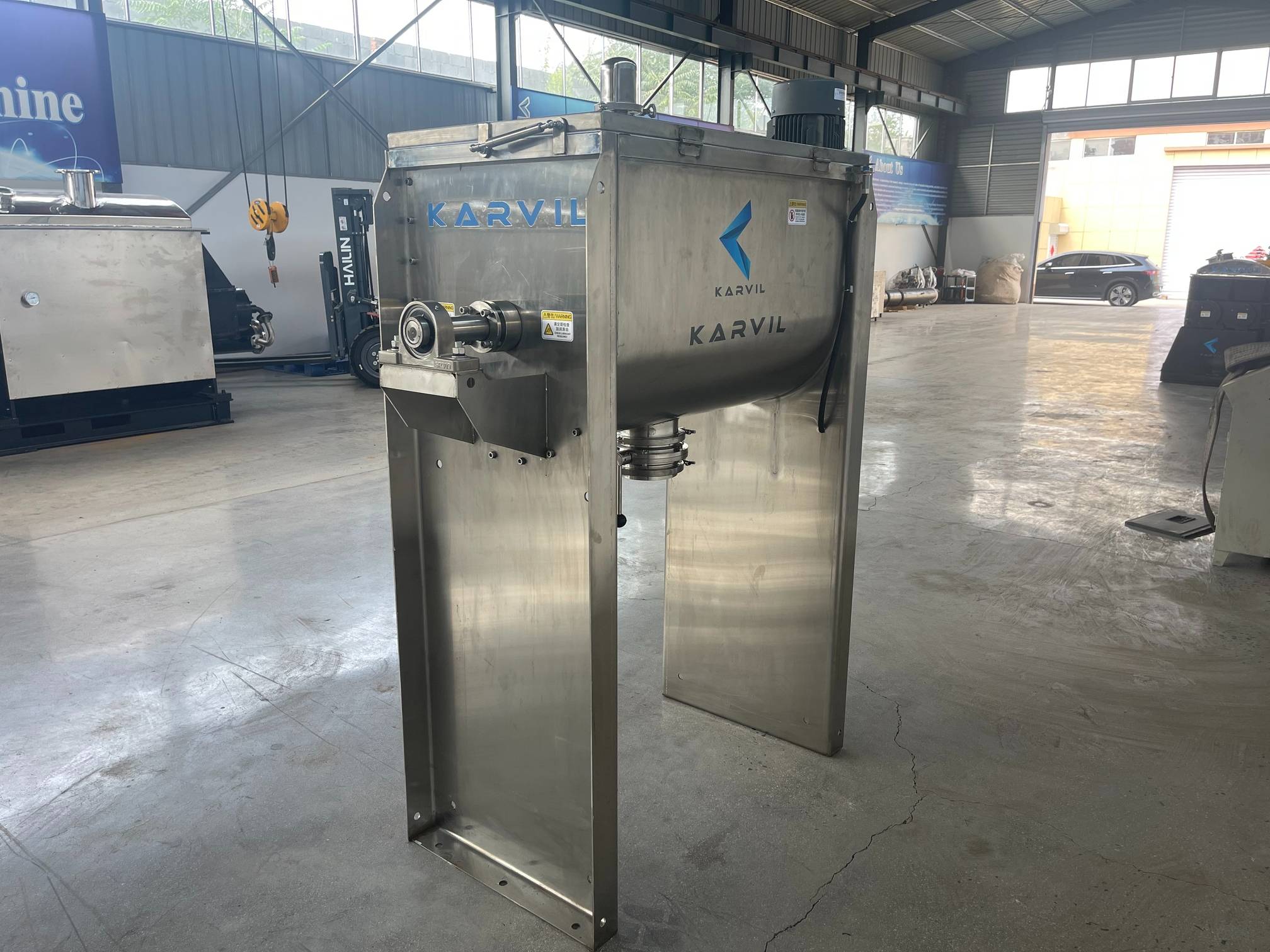

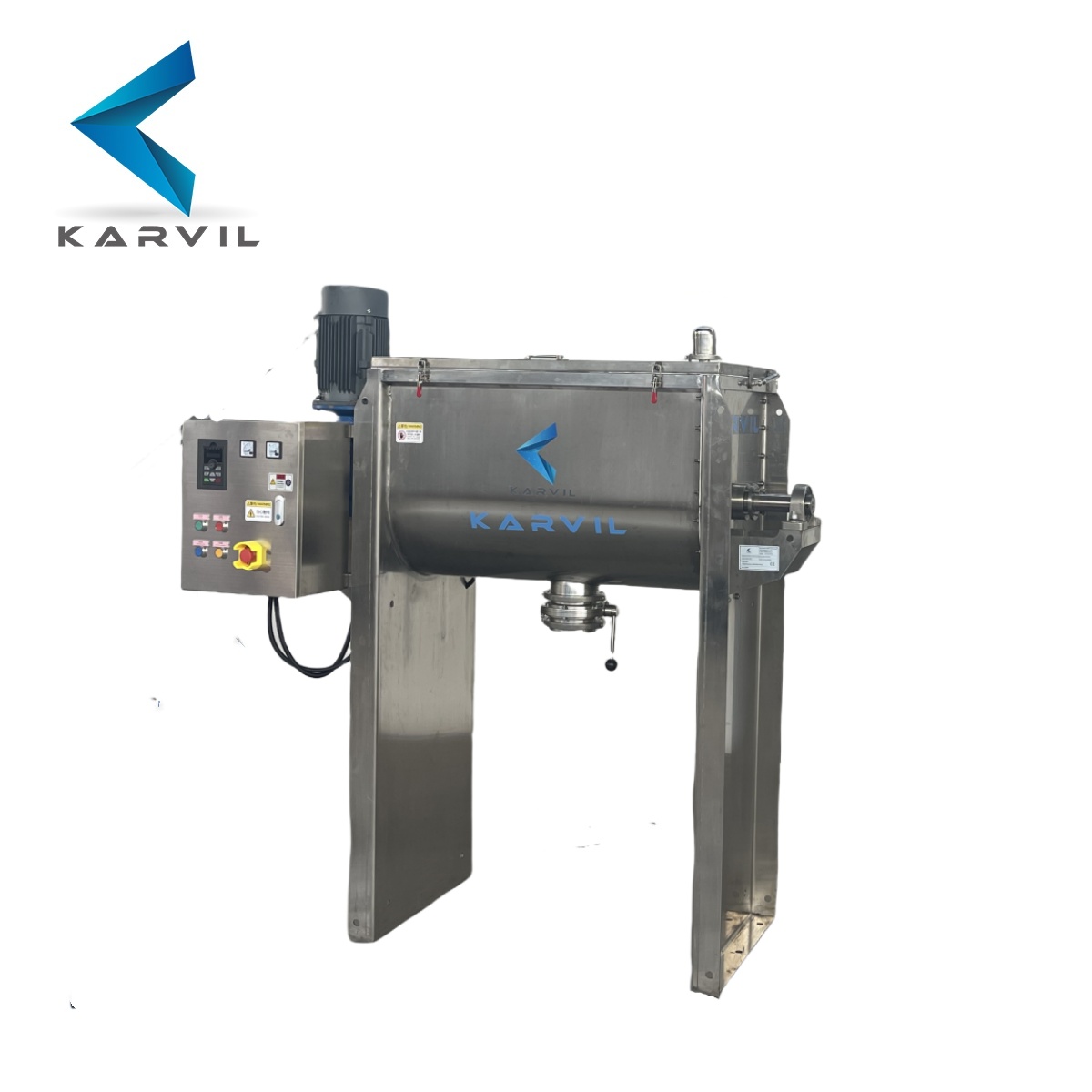

Karvil Machinery 300L horizontal ribbon mixer, designed for precise and hygienic mixing of flour and food-grade additives. Built entirely from SS304 stainless steel, including a mirror-polished inner surface, the mixer ensures sanitary operation and easy cleaning, making it ideal for food processing and other demanding applications.


Ribbon Blender Working Principle

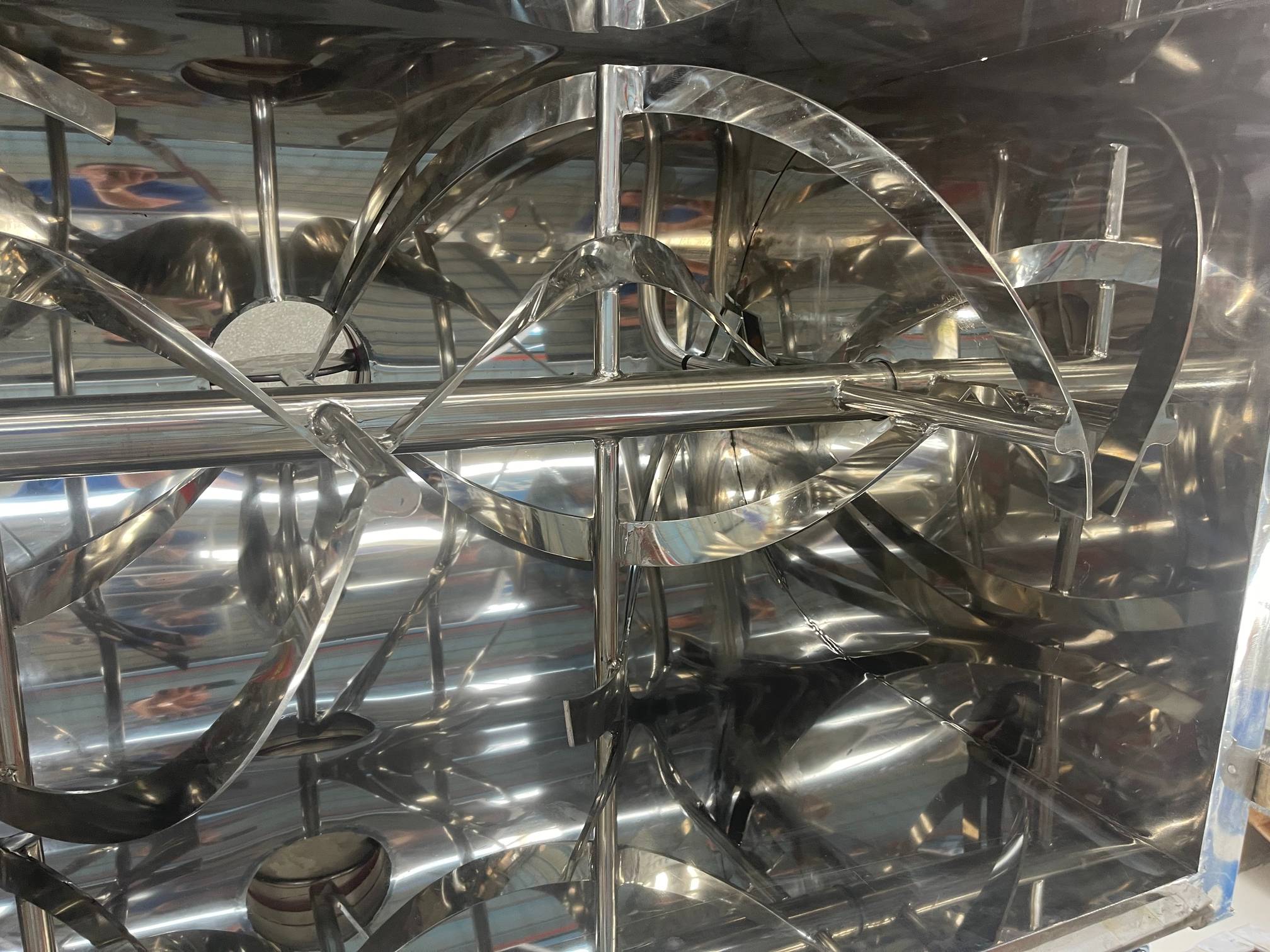

This ribbon mixer uses a horizontal U-shaped tank and a double-layer ribbon agitator to move materials in two

directions at the same time. The outer ribbon pushes the powder toward the center, while the inner ribbon moves it outward. As the materials circulate, they mix thoroughly in a short time. The design ensures even blending of flour, additives, and other dry ingredients without damaging the texture or causing clumps.


Construction & Design Features

  • Mixer Body: Fabricated entirely from SS304 stainless steel, robust and corrosion-resistant

  • Internal Surface Finish: Mirror-polished to Ra<0.4μm, reducing material retention and improving cleanability

  • Safety Grid: SS304 mesh structure ensures operator safety without obstructing material flow

  • Dust Collector Port: Allows optional connection to a dust collector to keep the working area clean and food-safe

  • Pneumatic Cover Assist: Makes it easier to open the lid for loading, inspection, or cleaning

  • Control Box: Includes inverter speed control, emergency stop, and indicator lights

  • Drive System: Direct-coupled Siemens motor ensures stable, low-noise operation

  • Sealing System: Shaft seals prevent material leakage, with optional air purge design for fine powder sealing




Why Choose Karvil?

Backed by Karvil's extensive global experience, with installations in over 30 countries, our ribbon blender is not just a piece of equipment; it's a long - term investment in your production efficiency. We provide comprehensive support, from pre - sale consultation to after - sales service, including layout design, operator training, and prompt technical assistance.

If you're looking to upgrade your food powder mixing process, improve product quality, and increase production efficiency, contact Karvil today. Let's discuss how our ribbon blender can be customized to meet your specific requirements and request a personalized quote.


ribbon-mixer-karvil-machinery

Karvil-Machinery-Horizontal-Ribbon-Mixer-6

Technical Parameters


Why Choose This Ribbon Blender?


1. Proven Performance

Karvil Machinery ribbon mixers are trusted by global clients in the food, chemical, and pharmaceutical industries. Our mixers deliver consistent, homogeneous blending for powders, granules, and light pastes.

2. Food-Grade Construction

All contact parts are made of high-quality stainless steel (SUS304 or optional SUS316L), ensuring hygiene, corrosion resistance, and compliance with food safety standards.

3. Custom Solutions

We design mixers tailored to your material characteristics and production needs — from volume and mixing intensity to feeding, discharging, and automation level.

4. Efficient Mixing Technology

Our dual-direction ribbon design ensures fast and uniform mixing with minimal residue, reducing batch time and maximizing productivity.

5. Integrated Feeding Systems

Optional screw conveyors, vacuum feeders, or pneumatic loaders make our mixers easy to integrate into your production line.

6. Durable and Low Maintenance

Built with robust components and precision workmanship, Karvil ribbon blenders are made to last, reducing downtime and maintenance costs.

7. Global Export Experience

With successful installations in over 30 countries — including Mexico, Canada, and Southeast Asia — we understand international standards, documentation, and logistics.

8. Full Support & Service

From pre-sale consultation to after-sales support, we offer layout design, operation training, and prompt technical assistance.
