| Quantity: | |
|---|---|
WLDH-500
Karvil
Customizable Design
The mixer can be made with all stainless steel or materials contact part with stainless steel or all carbon steel.
Interior Surfaces: Mirror polished.

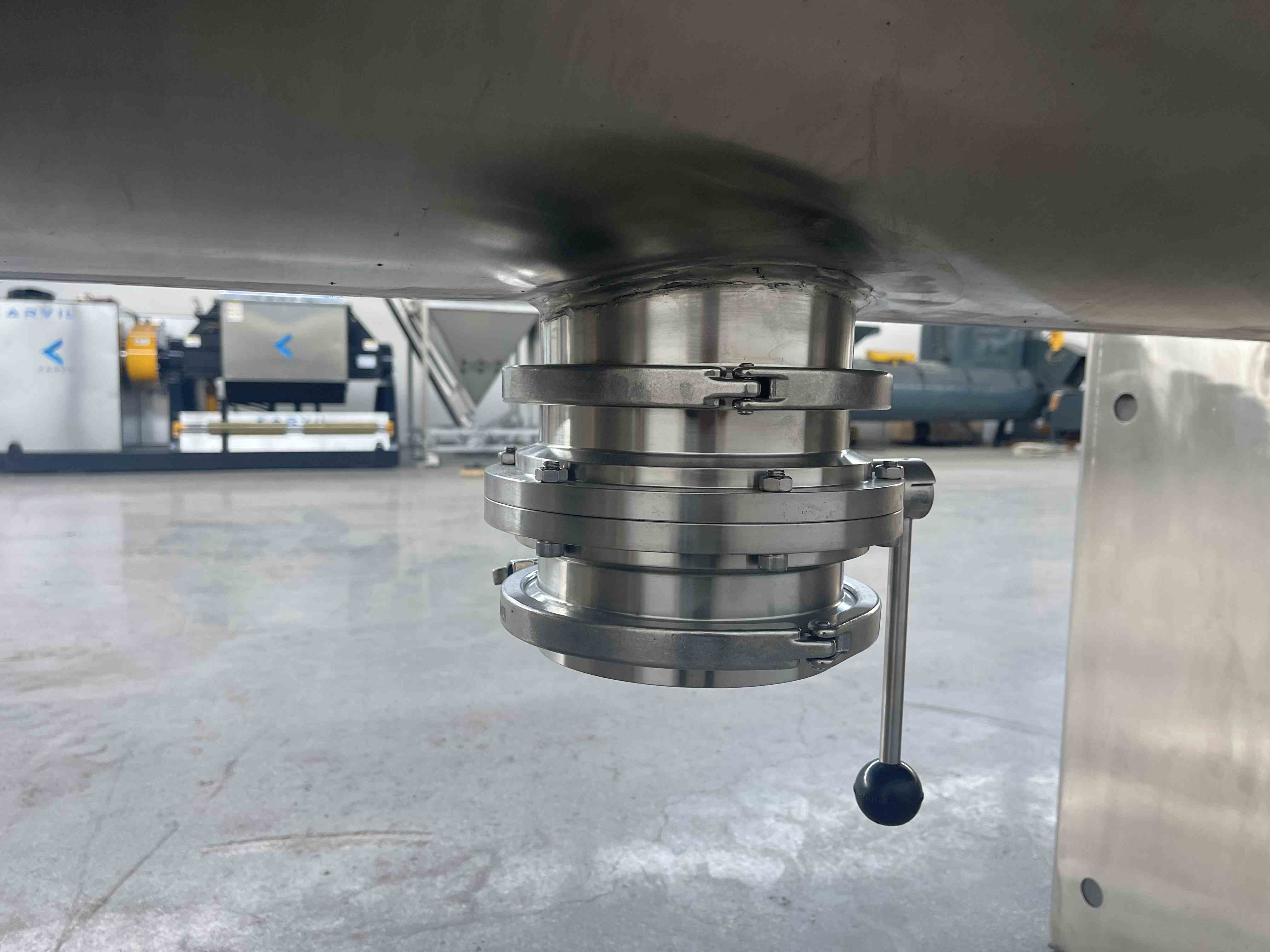

Discharge: Manual valve or pneumatic valve.
Safety device：Safety grid on the cylinder. Emergency stop device when the lid is open while the safety grip is not on the cylinder
Heating function ( optional): Electric heating with jacket for heating transfer oil; Jacket for steam; Jacket for water circulation.
Cooling function( optional): Jacket for cooling water circulation or equipped together with a chiller.
Vacuum function( optional): it includes vacuum pump, metal hose, buffer tank and vacuum gauge. Vacuum degree can reach-0.096mpa.
Other customized function can be discussed.

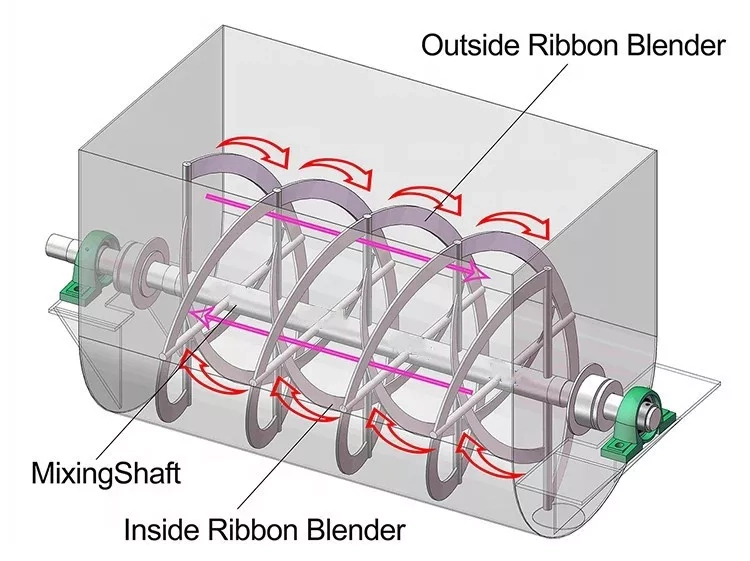

When the horizontal ribbon mixer is running, the motor drives the reducer to rotate the stirring shaft, and the double ribbon produces material flow:
The outer ribbon pushes the material along the cylinder wall from both ends to the center
The inner ribbon transports the material from the center to both ends
| Industry | Typical Materials |
| Chemical | Additives, resin powder, silicone rubber, coating materials |
| Food | Flour, milk powder, spices, food additives |
| Pharmaceutical | Pharmaceutical powders, granules, herbal extracts |
| Construction | Dry mortar, cement, putty powder |
| Agriculture & Feed | Premix, vitamins, trace elements |
| Mineral & Mining | Mineral powders, ceramic powder, metal oxides |
Karvil Machinery ribbon mixers are trusted by global clients in the food, chemical, and pharmaceutical industries. Our mixers deliver consistent, homogeneous blending for powders, granules, and light pastes.
All contact parts are made of high-quality stainless steel (SUS304 or optional SUS316L), ensuring hygiene, corrosion resistance, and compliance with food safety standards.
We design mixers tailored to your material characteristics and production needs — from volume and mixing intensity to feeding, discharging, and automation level.

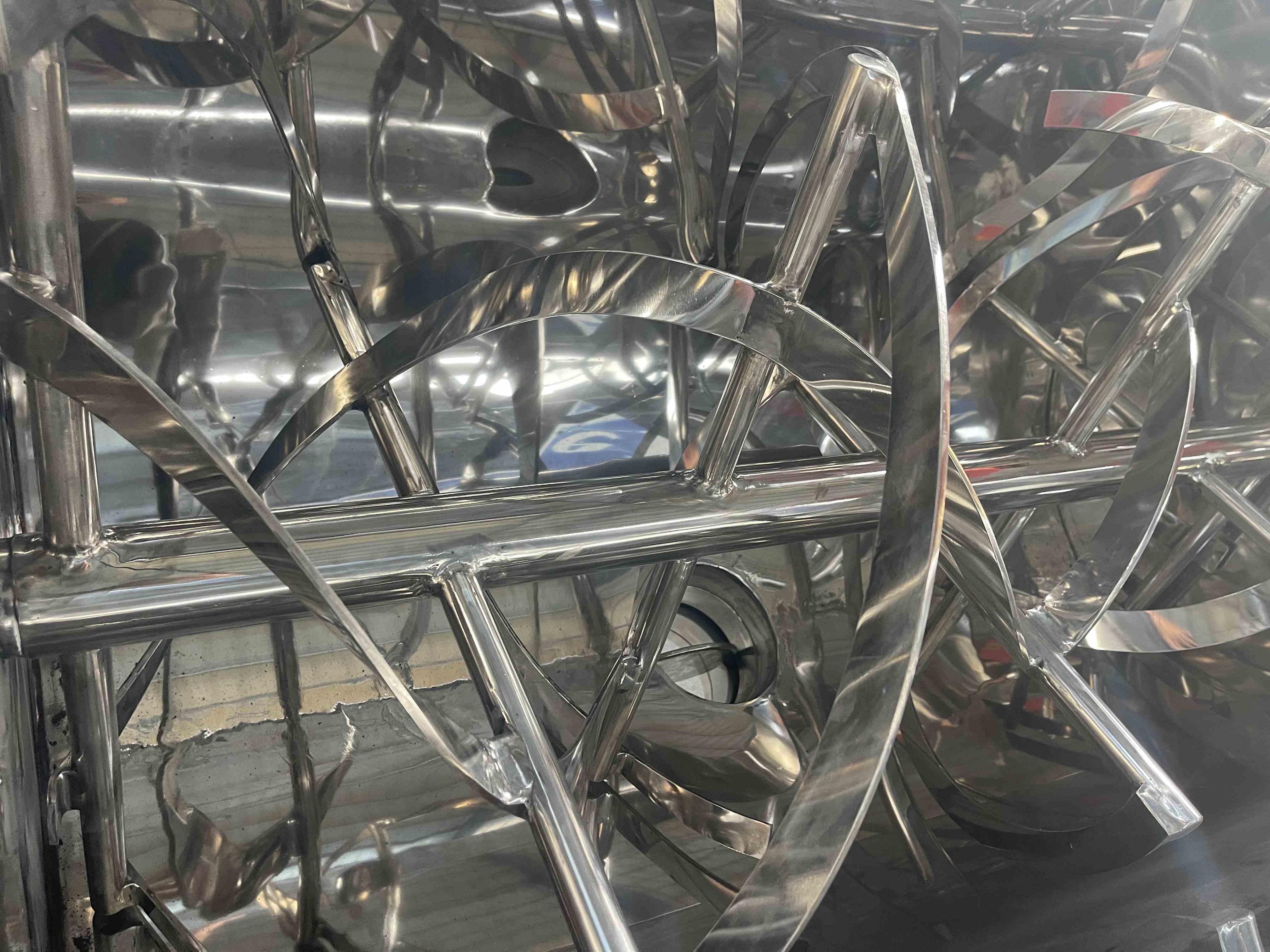

Our dual-direction ribbon design ensures fast and uniform mixing with minimal residue, reducing batch time and maximizing productivity.
Optional screw conveyors, vacuum feeders, or pneumatic loaders make our mixers easy to integrate into your production line.
Built with robust components and precision workmanship, Karvil ribbon blenders are made to last, reducing downtime and maintenance costs.
With successful installations in over 30 countries — including Mexico, Canada, and Southeast Asia — we understand international standards, documentation, and logistics.
From pre-sale consultation to after-sales support, we offer layout design, operation training, and prompt technical assistance.
