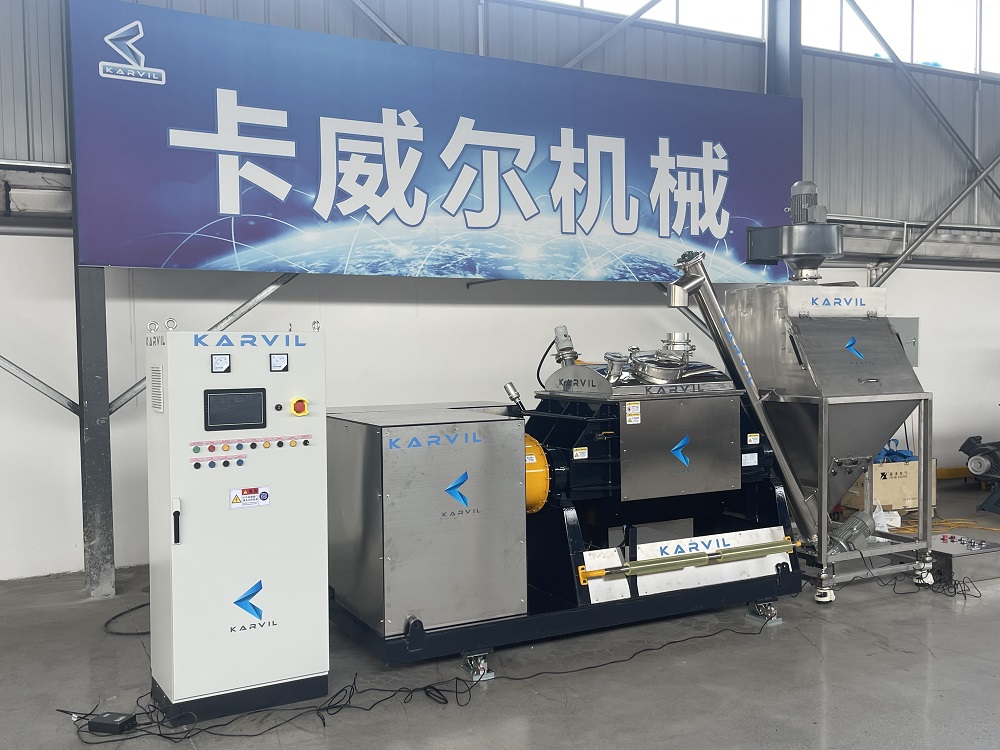

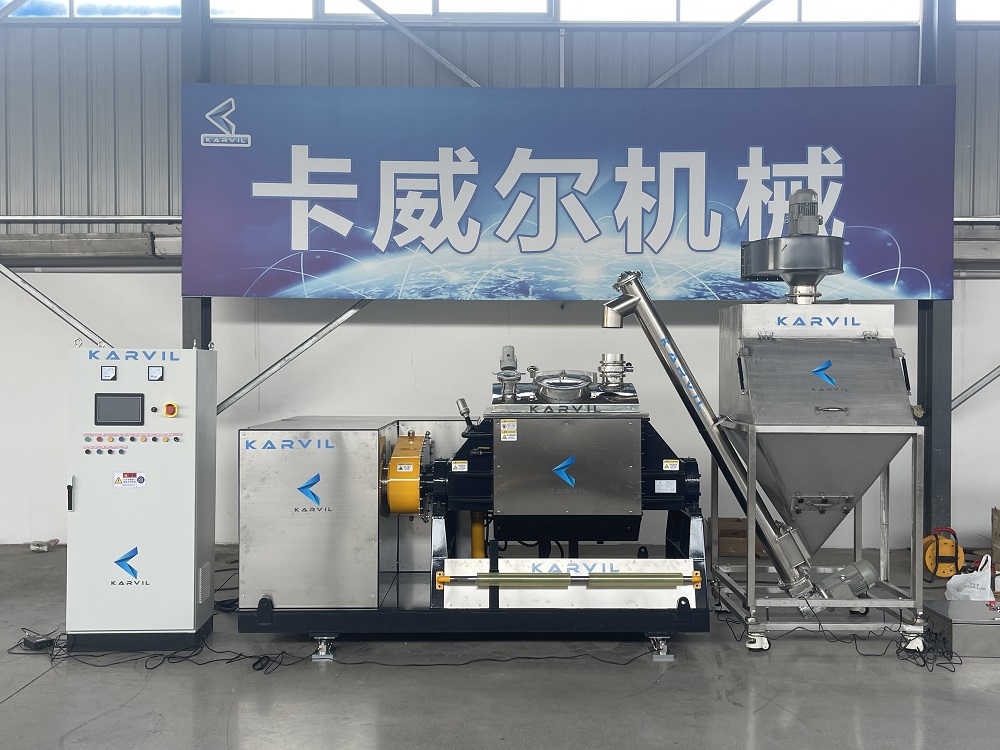

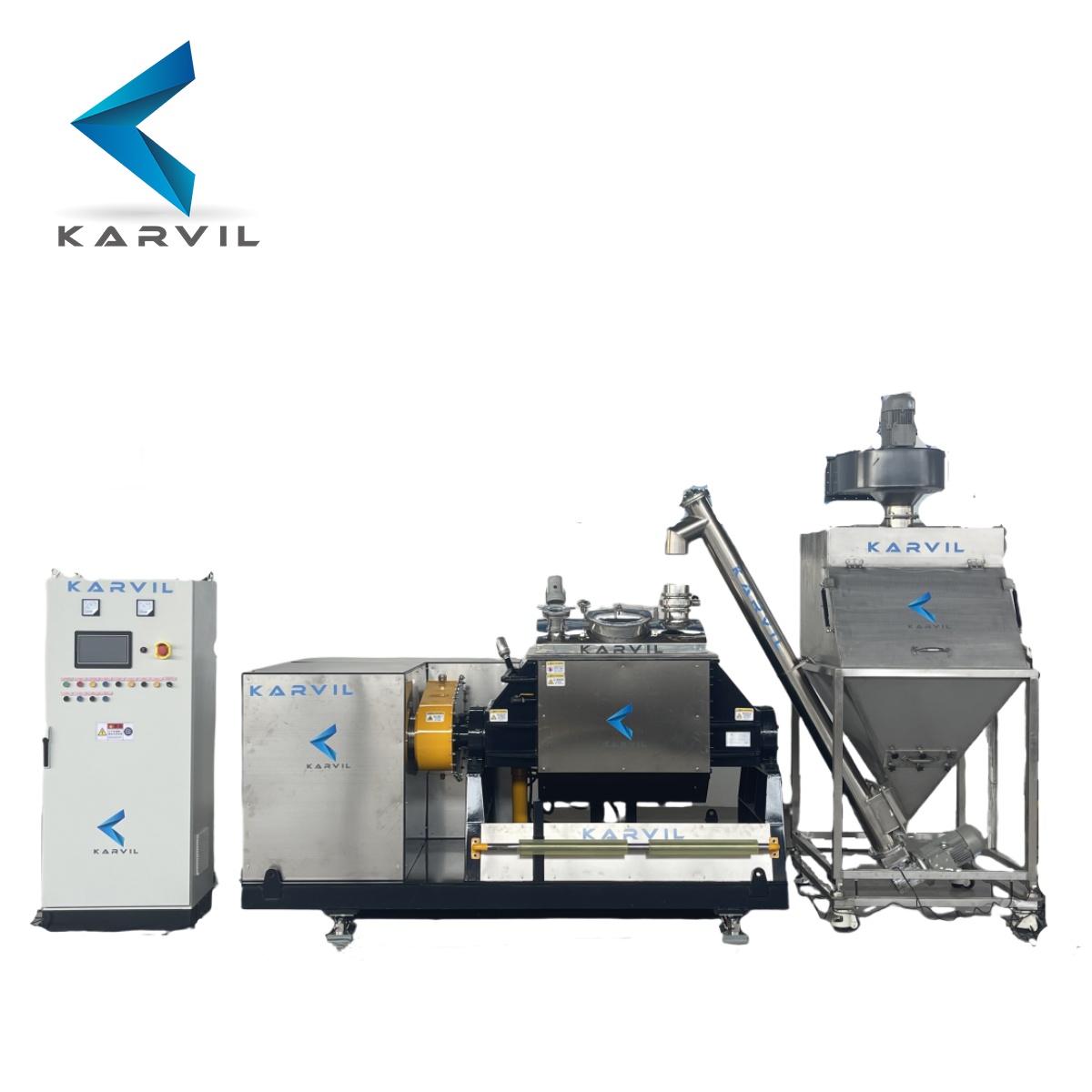

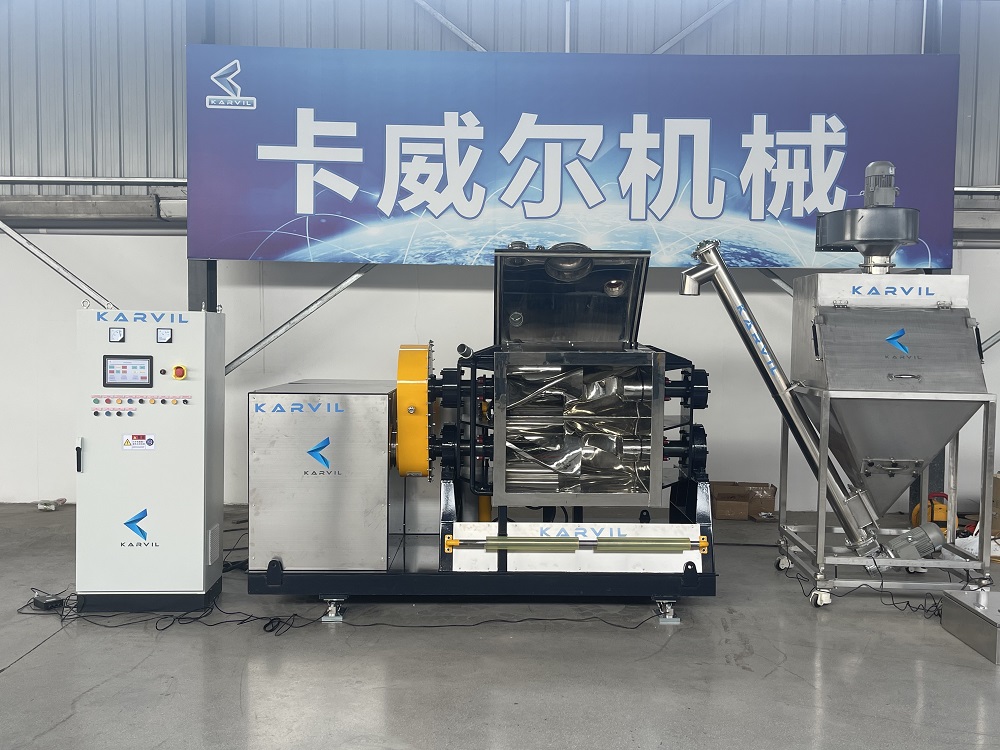

PLC Controlled Electric Heating Tilting Kneader

Capacity: 210 liters working volume

Heating System: Electric heating jacket ensures stable and uniform temperature control, ideal for thermosensitive food materials like protein bar mixtures.

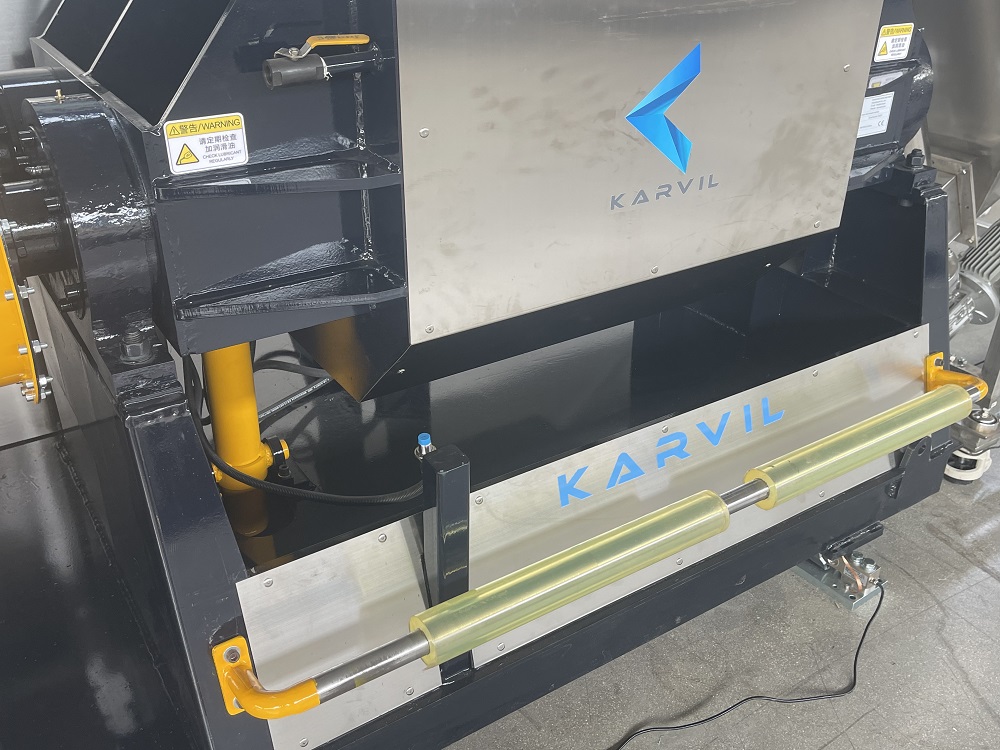

Discharge Method: Hydraulic tilting of the mixing chamber allows easy and complete discharge, reducing manual labor and material residue.

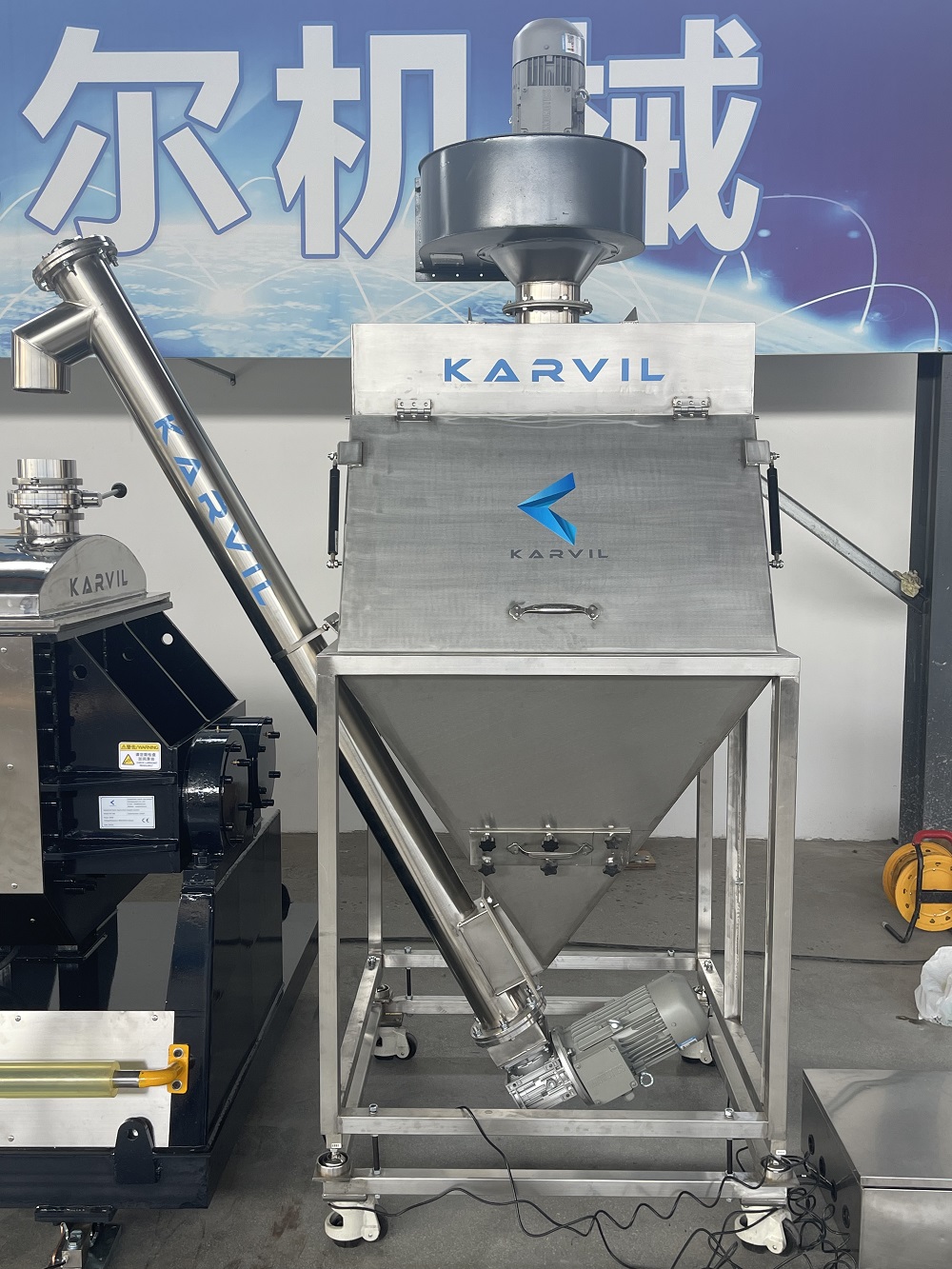

Dust Removal Station: Integrated dust collection system ensures a clean production environment, especially during powder loading and mixing.

PLC Control System: Intuitive touchscreen interface with programmable recipes, temperature monitoring, and real-time mixing control for consistent results.

Robust Construction: Made of food-grade stainless steel (SS304/SS316L), with polished internal surfaces for easy cleaning and compliance with hygiene standards.

Safety Features: Equipped with multiple safety interlocks and emergency stop functions.

The material contact part can be SS304, SS316 with mirror polished or carbon steel. The rest part can also be stainless steel and mostly adopt carbon steel with automotive grade industrial paint

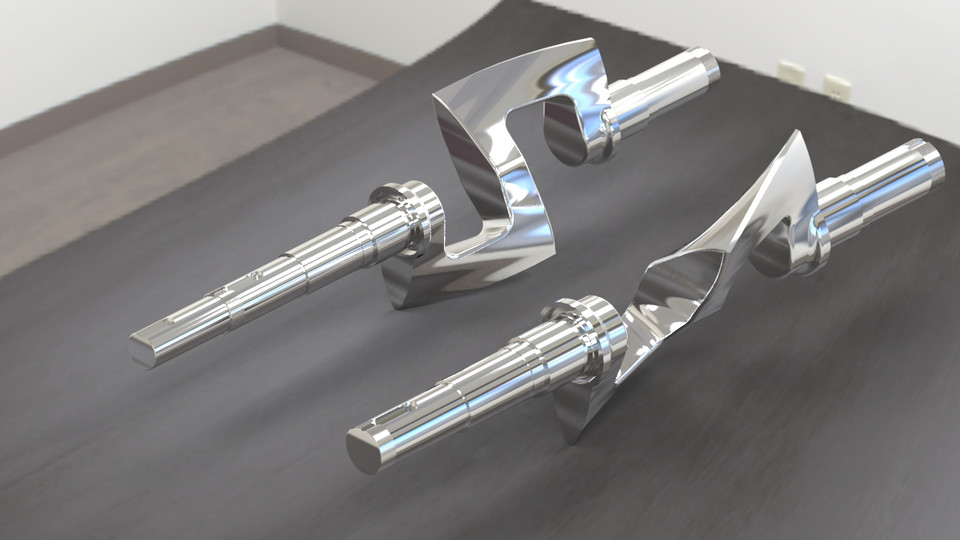

Sigma blades speed can be adjustable with inverter control; one is fast and another is slow.

Discharge method can hydraulic tilting discharging or screw extrusion discharging or both of them.

Independent Control Panel: Function control，Schneider electronic components，Circuit breaker protection，Voltage & current showed and etc.

Vacuum function( optional): it includes vacuum pump, metal hose, buffer tank and vacuum gauge. Vacuum degree can reach-0.096mpa

Heating function ( optional): Electric heating with far ultrared heaters or with jacket for heating transfer oil; Jacket for steam; Jacket for water circulation.

Cooling function( optional): Jacket for cooling water circulation or equipped together with a chiller.

Other customized function can be discussed.

Chemicals: Ideal for mixing rubber compounds, adhesives, resins, sealants, silicone rubber, and other high-viscosity chemical compounds. They enable consistent blending of ingredients in chemical manufacturing.

Carbon Industry: Used in the mixing of carbon compounds for the production of carbon paste used in electrodes or in carbon-related manufacturing processes.

Adhesives and Sealants: Vital in the production of adhesives and sealants where combining different ingredients to achieve specific properties is crucial.

Pharmaceuticals: Utilized for blending powders, granules, and pastes in the production of pharmaceuticals, vitamins, supplements, and medicinal creams. Sigma mixers ensure uniform distribution of ingredients.

Plastics and Polymers: Used for compounding, mixing additives, colorants, fillers, and other materials in the production of plastics, rubber products, and polymer-based compounds.
