Stainless Steel Sigma Blade Mixer

Quantity:
Availability:





Inquire Add to Basket

Model:
NH-300

Customizable Design

The material contact part can be SS304, SS316 with mirror polished or carbon steel. The rest part can also be stainless steel and mostly adopt carbon steel with automotive grade industrial paint

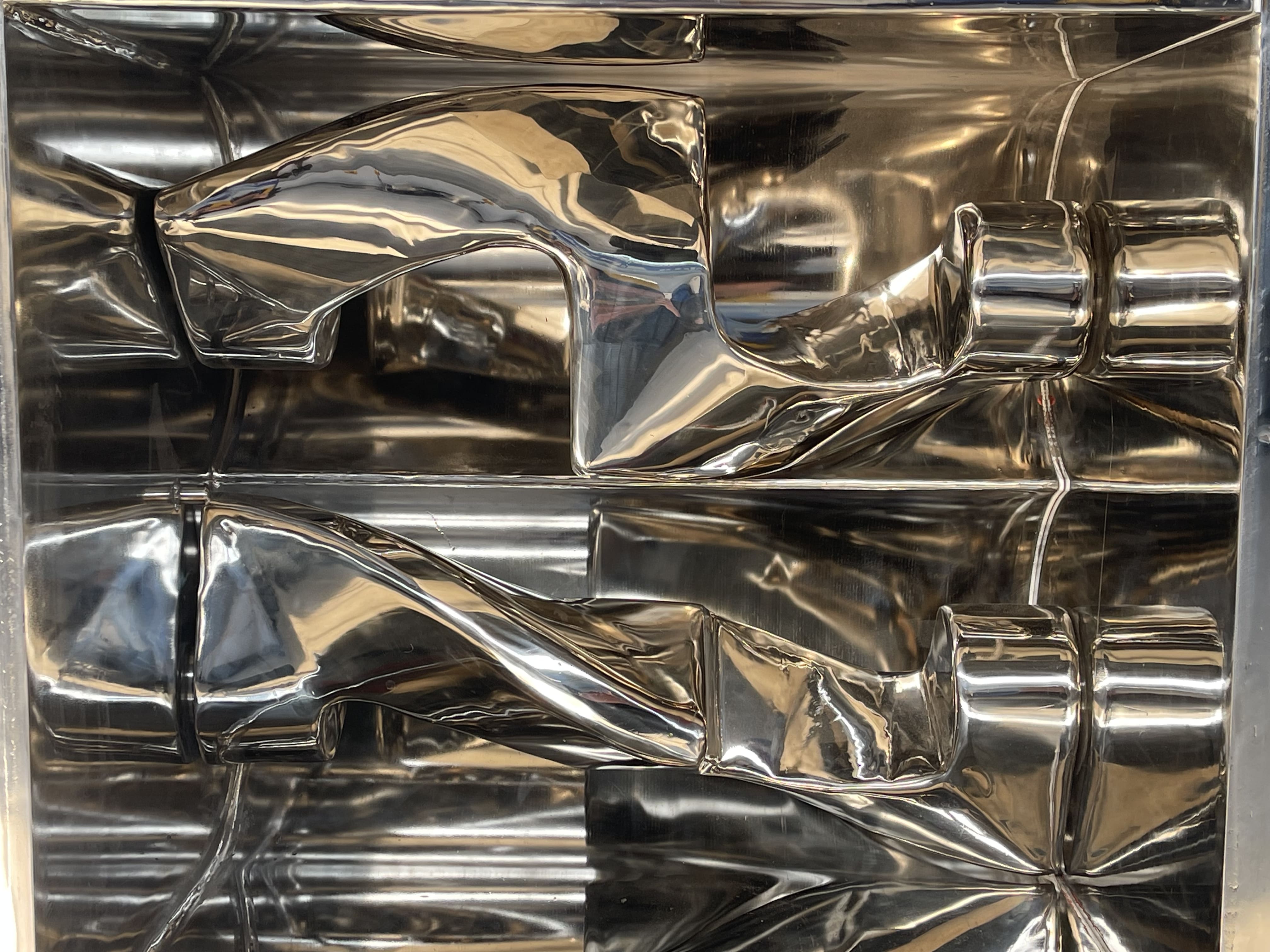

Sigma blades speed can be adjustable with inverter control; one is fast and another is slow.
Discharge method can hydraulic tilting discharging or screw extrusion discharging or both of them.
Independent Control Panel: Function control，Schneider electronic components，Circuit breaker protection，Voltage & current showed and etc.
Vacuum function( optional): it includes vacuum pump, metal hose, buffer tank and vacuum gauge. Vacuum degree can reach-0.096mpa
Heating function ( optional): Electric heating with far ultrared heaters or with jacket for heating transfer oil; Jacket for steam; Jacket for water circulation.
Cooling function( optional): Jacket for cooling water circulation or equipped together with a chiller.
Other customized function can be discussed.

Technical Parameters

sigma-mixer-karvil-machinery

Features

Horizontal trough-shaped chamber made of stainless steel, ensuring durability, corrosion resistance, and compliance with stringent hygiene standards.
The stainless steel construction allows for easy cleaning and maintenance, crucial in industries like food, pharmaceuticals, and cosmetics where cleanliness is paramount.
These sigma mixers often come with powerful motors and precise control systems, ensuring efficient blending of materials.
