NH-10
Karvil
Customizable Design

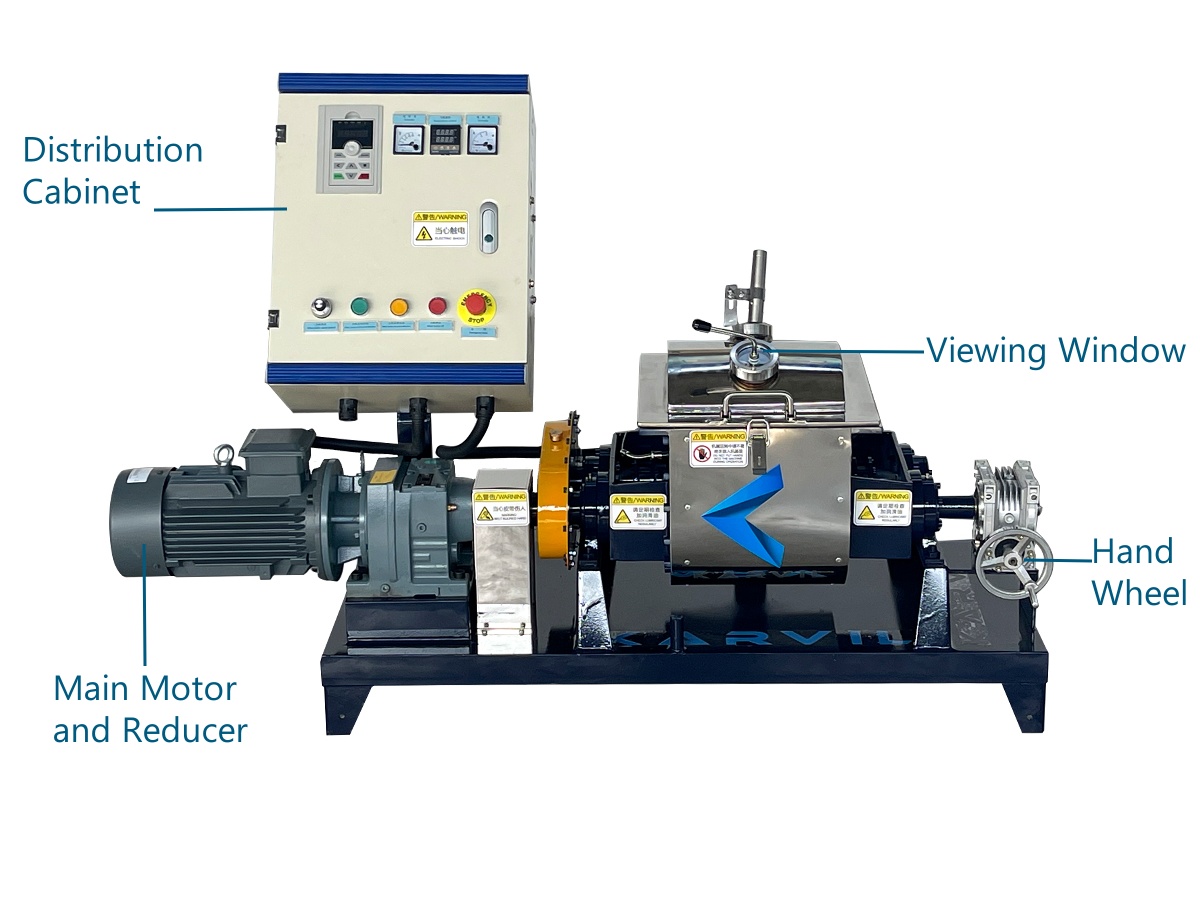

In the domain of laboratory and small - scale production, the Laboratory Sigma Kneader Mixer, specifically the NH - 10 model from Karvil, emerges as an exceptional piece of equipment. It is meticulously engineered to cater to the diverse needs of researchers, formulators, and small - batch manufacturers, ensuring precision and efficiency in every operation.
The NH - 10 Laboratory Sigma Kneader Mixer is constructed with a strong emphasis on durability and compatibility. You have the option to choose from materials such as SUS 304, 316, or mild steel. SUS 304 and 316 stainless steel are ideal when corrosion resistance is of utmost importance, particularly in chemical or food - related applications. They offer a hygienic surface and long - lasting performance. On the other hand, mild steel provides a cost - effective alternative for less corrosive environments. This flexibility in material selection ensures that the NH - 10 can adapt to your specific requirements, guaranteeing its reliability in your production processes.
With a rotating speed of 42/34 RPM, the NH - 10 provides versatility in the mixing process. The two - speed option allows you to initiate with a higher speed (42 RPM) for rapid dispersion of ingredients and then shift to a lower speed (34 RPM) for a more gentle, homogeneous blend. Paired with a main motor power ranging from 1.1 - 3 KW, it possesses the necessary torque to handle a wide variety of materials, from viscous substances to more challenging blends.
Steam Heating: It features a jacket for steam with a pressure limit of ≤0.3Mpa. This method offers a consistent and even heat source, which is excellent for materials that require gentle and uniform heating.
Electric Heating: With an electric heating power of 2.4 KW (using media with heating transfer oil), it enables rapid and precise temperature control. This is advantageous when you need to quickly reach and maintain a specific temperature during the mixing process.
Tilting Cylinder: This method enables quick and easy emptying of the mixer. It is convenient for transferring the mixed materials to containers or further processing equipment without much effort.
Screw Extrusion: Ideal for a more controlled and continuous discharge, especially when feeding directly into other machinery or when you require a steady flow of material. It helps in minimizing waste and ensuring consistent output.
Bottom Plate Discharging: This option provides a straightforward way to discharge the mixture. By opening the bottom plate, you can quickly release the contents, which is useful for materials that do not demand a controlled flow during discharge or when you need to empty the mixer promptly.
At Karvil, we understand that every laboratory and production setup is unique. If you are interested in learning more about how the NH - 10 Laboratory Sigma Kneader Mixer can enhance your operations, or if you have specific customization needs, contact us today. Let's collaborate to find the perfect solution for your mixing requirements.
Technical Parameters
Applications
