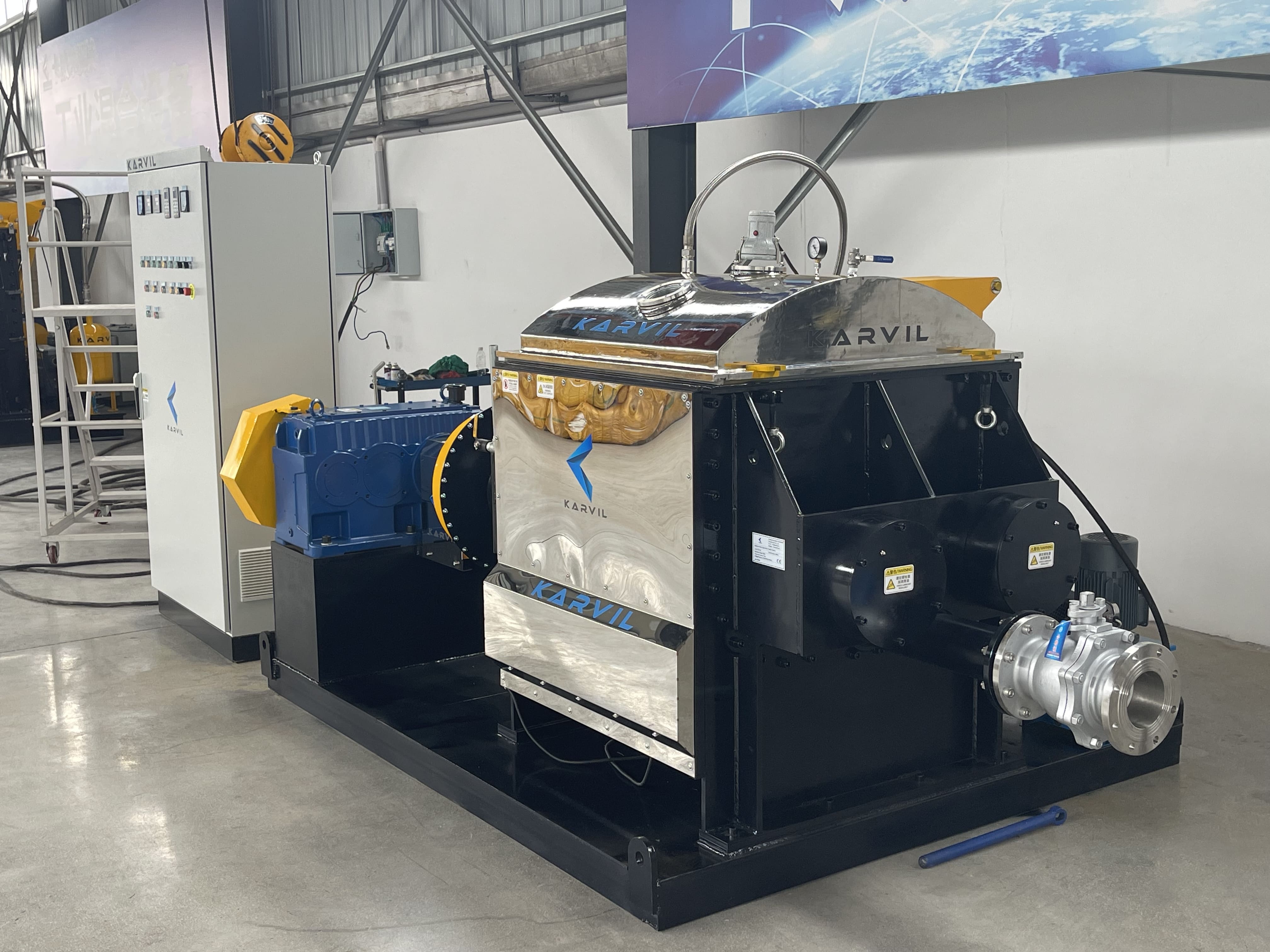

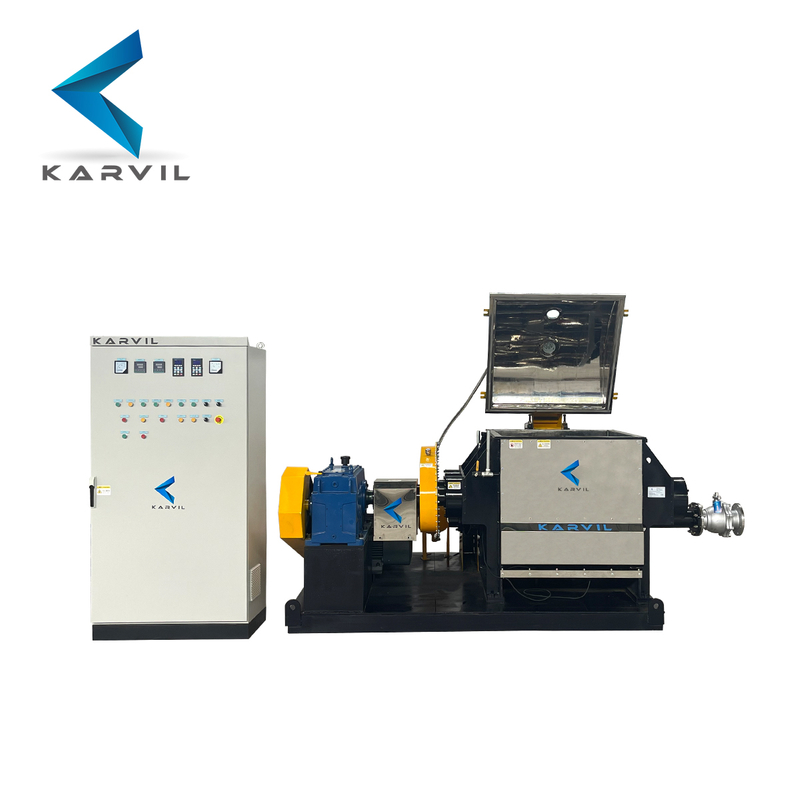

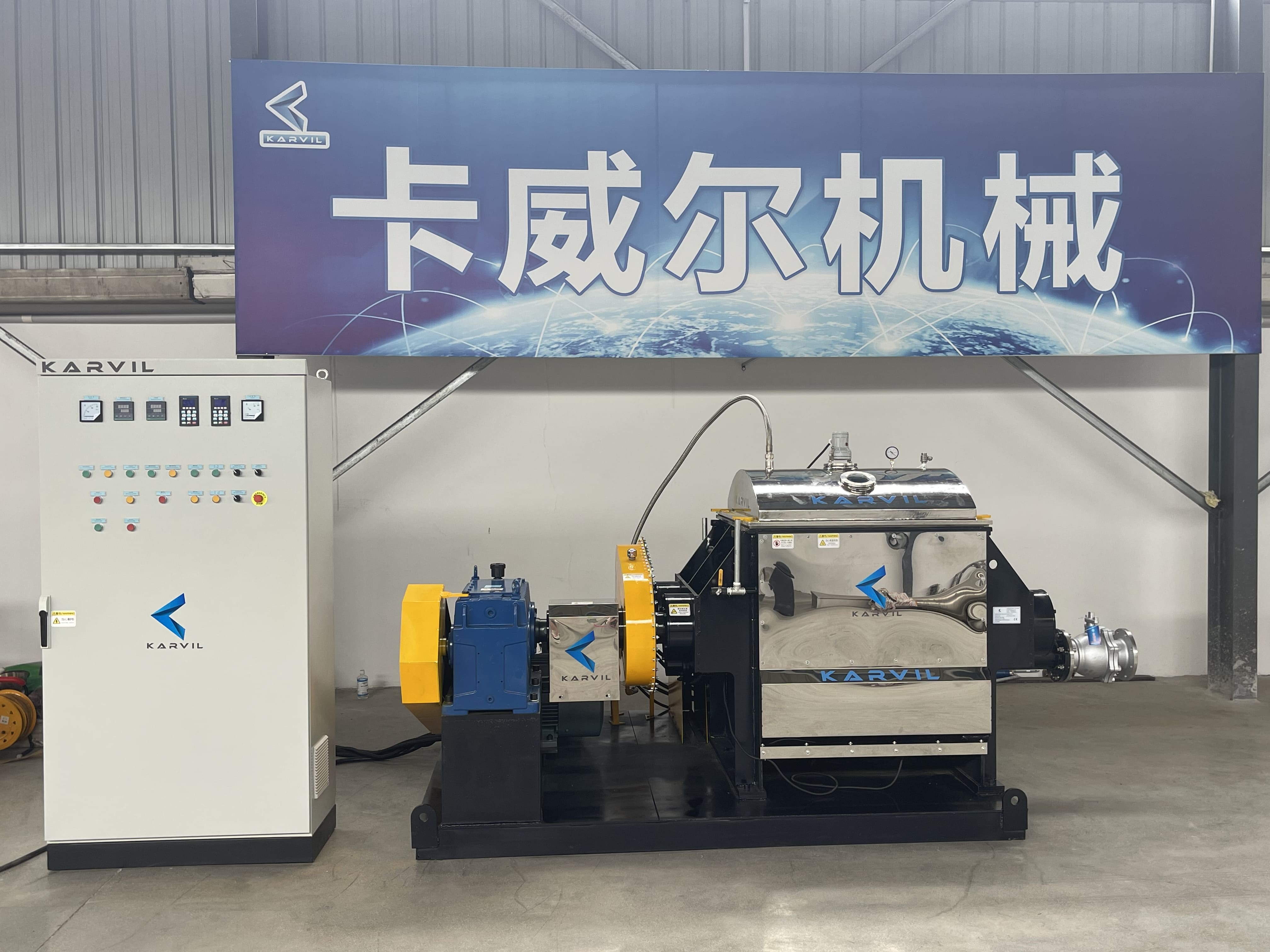

Z Blade Sigma Kneader Mixer

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • NH-500

Specifications

Specifications:

  • 350L working capacity (500L full capacity)

  • Main motor: Siemens 30kw-4, Screw motor: Siemens 7.5kw

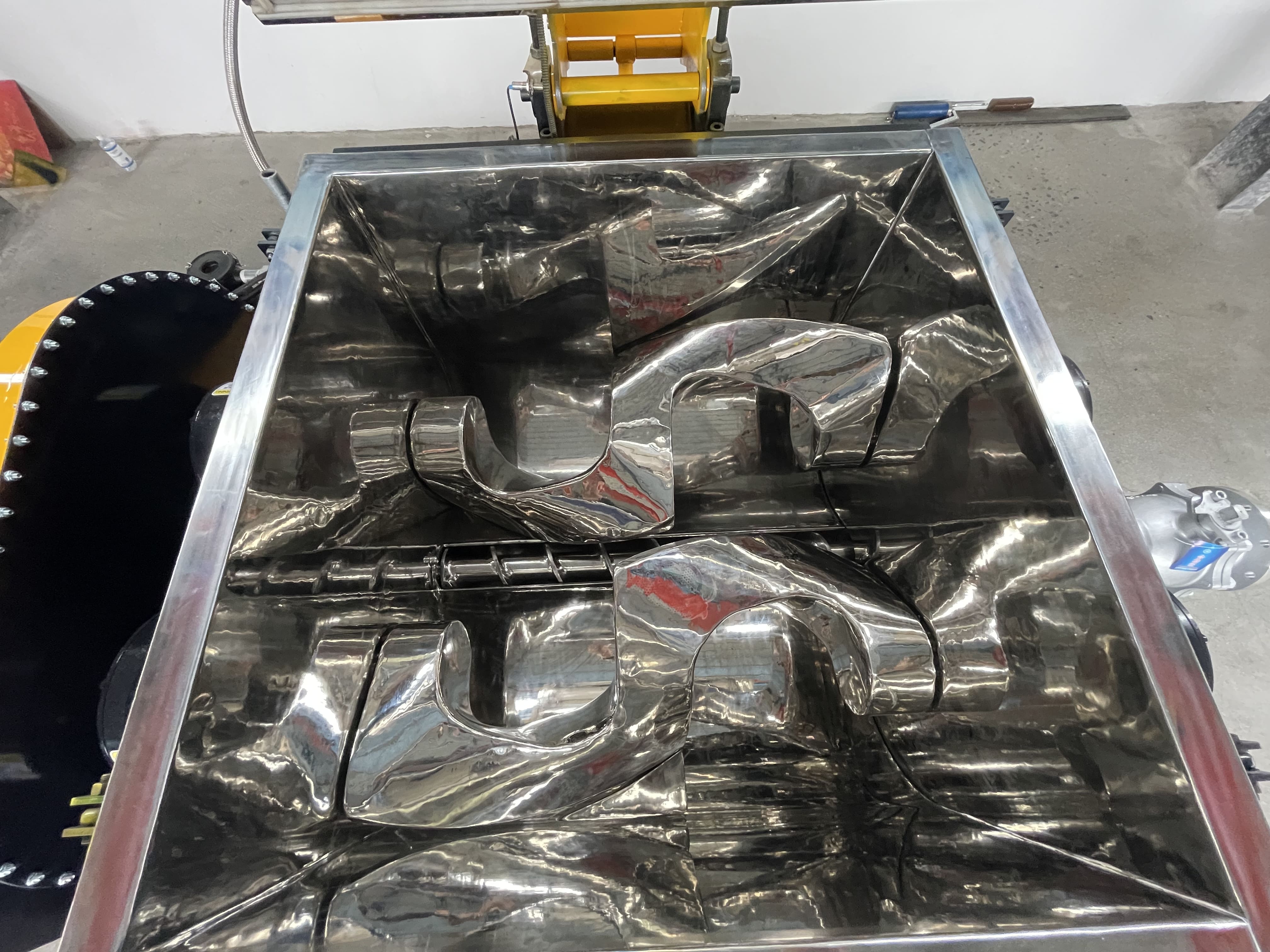

  • Blades: Double sigma blades with speed 0-42 rpm (fast); 0-34 rpm (slow), inverter controlled

  • Heating: Electric heating, 3kw*6pcs=18kw(, temperature up to120℃

  • Discharging: Screw discharging, with manual ball valve - DN125

  • Safety limit switch: Mixer will stop working once the lid is open

  • Schneider Electronic Components, Circuit Breaker Protection

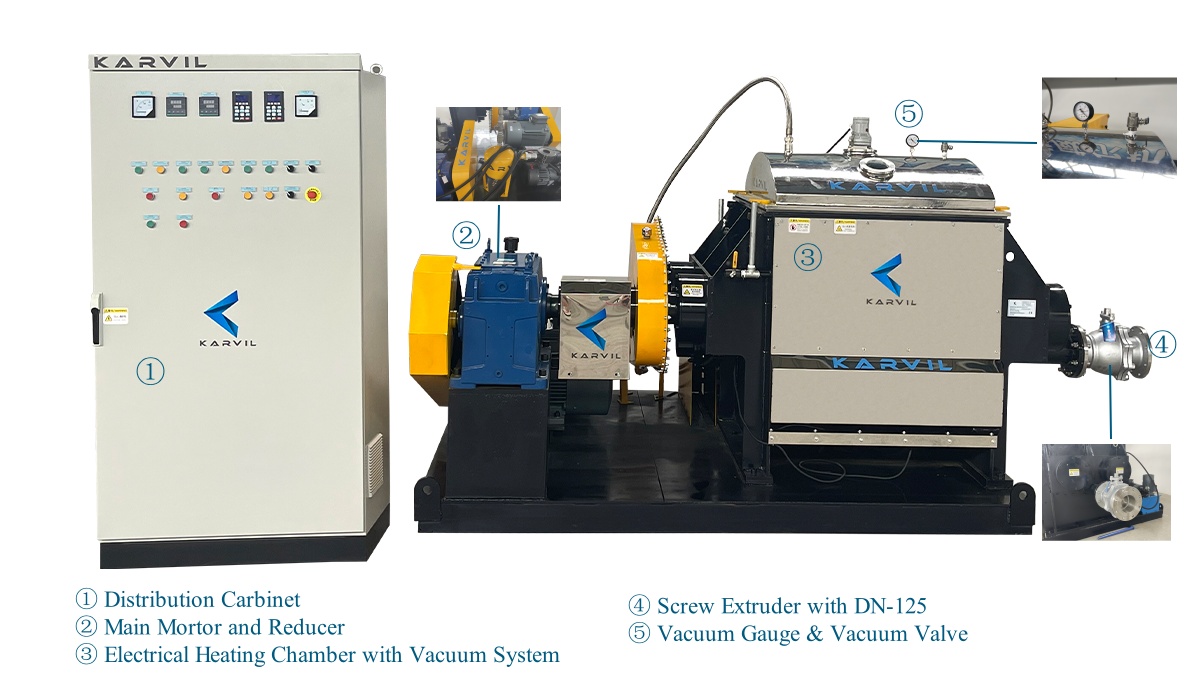

Food-Grade-Sigma-Z-Blade-Mixer_副本

Technical Parameters

sigma-mixer-karvil-machinery

Customizable Design

  • The material contact part can be SS304, SS316 with mirror polished or carbon steel. The rest part can also be stainless steel and mostly adopt carbon steel with automotive grade industrial paint

  • Sigma blades speed can be adjustable with inverter control; one is fast and another is slow.

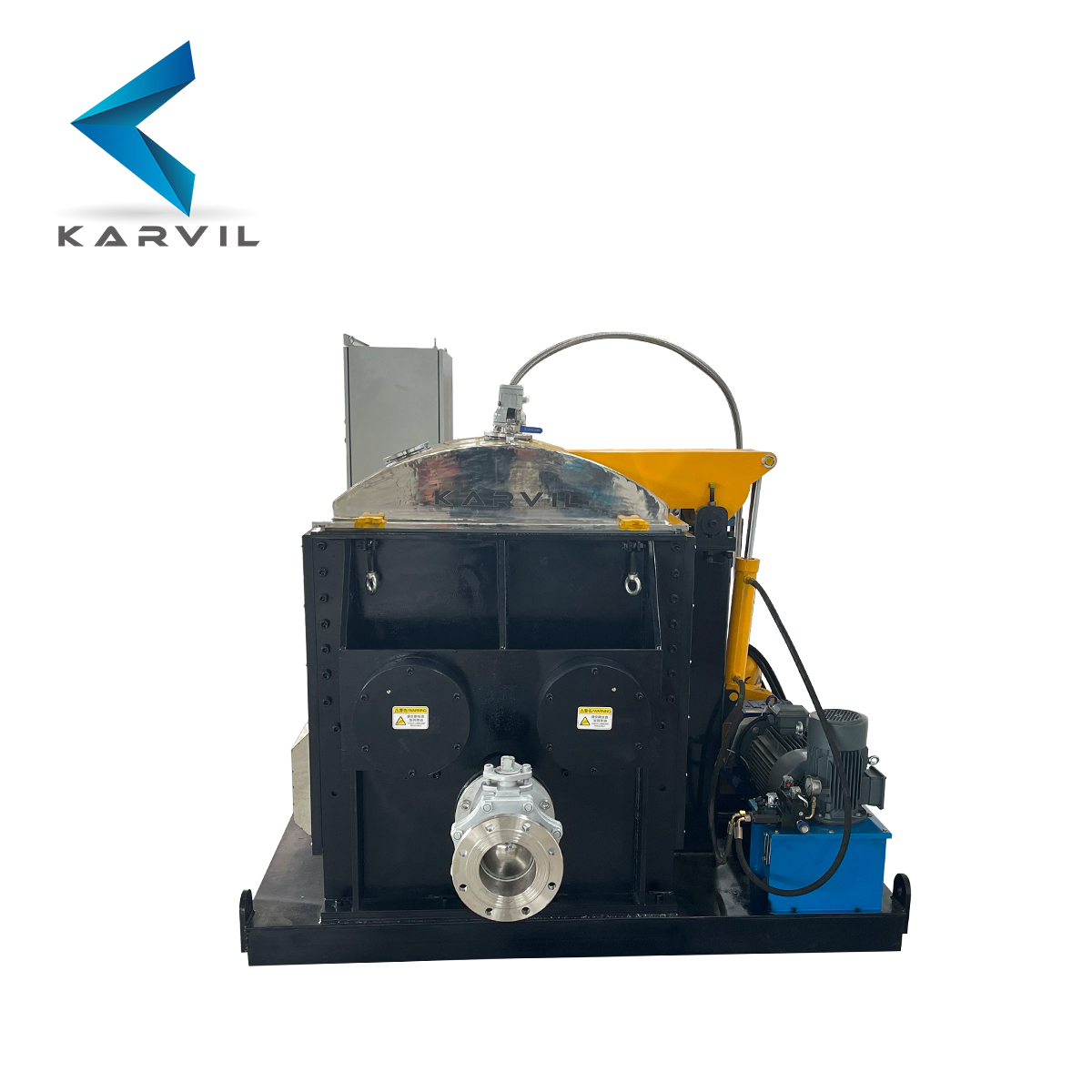

  • Discharge method can hydraulic tilting discharging or screw extrusion discharging or both of them.

  • Independent Control Panel: Function control,Schneider electronic components,Circuit breaker protection,Voltage & current showed and etc.

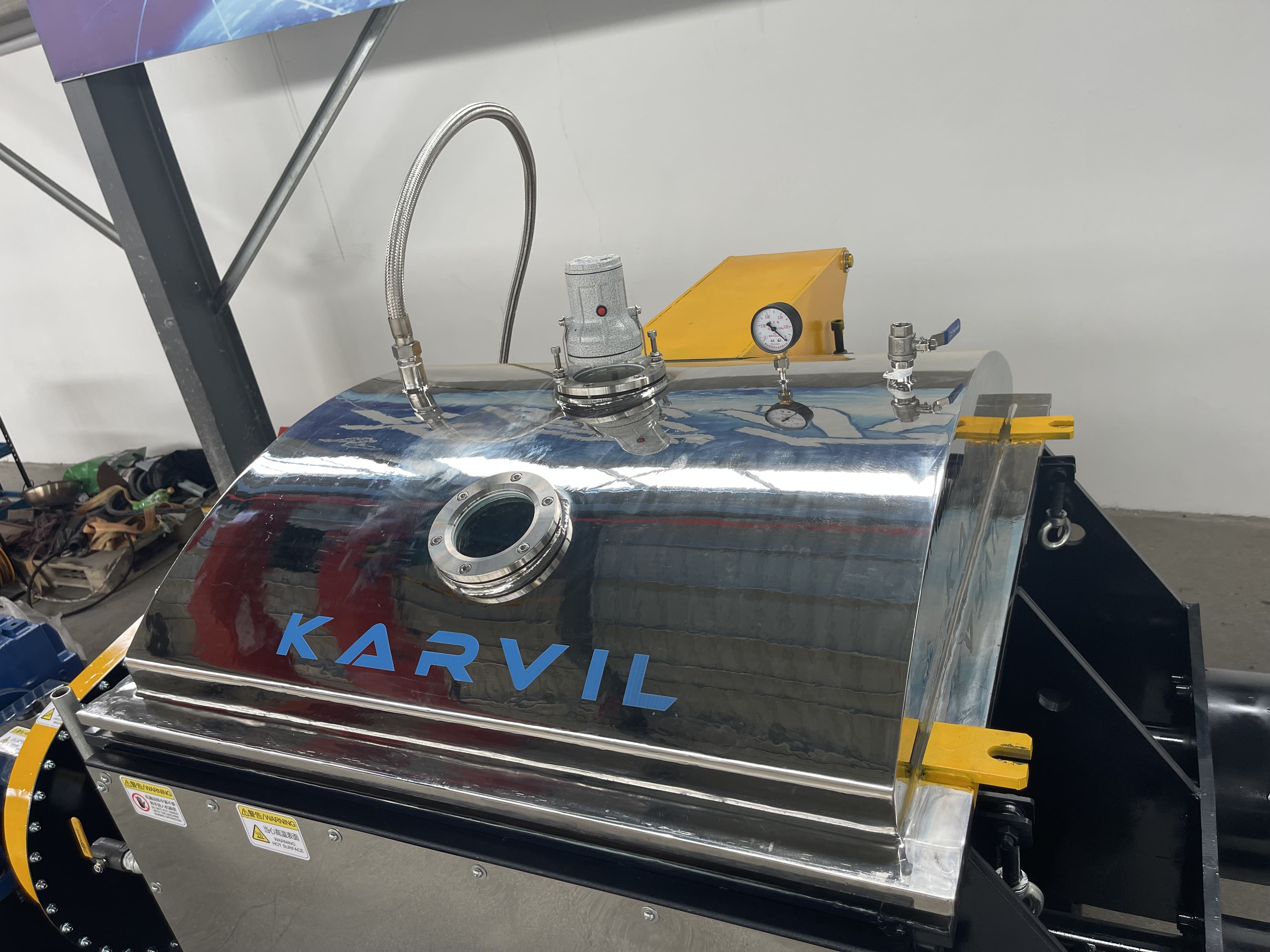

  • Vacuum function( optional): it includes vacuum pump, metal hose, buffer tank and vacuum gauge. Vacuum degree can reach-0.096mpa

  • Heating function ( optional): Electric heating with far ultrared heaters or with jacket for heating transfer oil; Jacket for steam; Jacket for water circulation.

  • Cooling function( optional): Jacket for cooling water circulation or equipped together with a chiller.

  • Other customized function can be discussed.
