NH-150
Customizable Design
The material contact part can be SS304, SS316 with mirror polished or carbon steel. The rest part can also be stainless steel and mostly adopt carbon steel with automotive grade industrial paint
Sigma blades speed can be adjustable with inverter control; one is fast and another is slow.

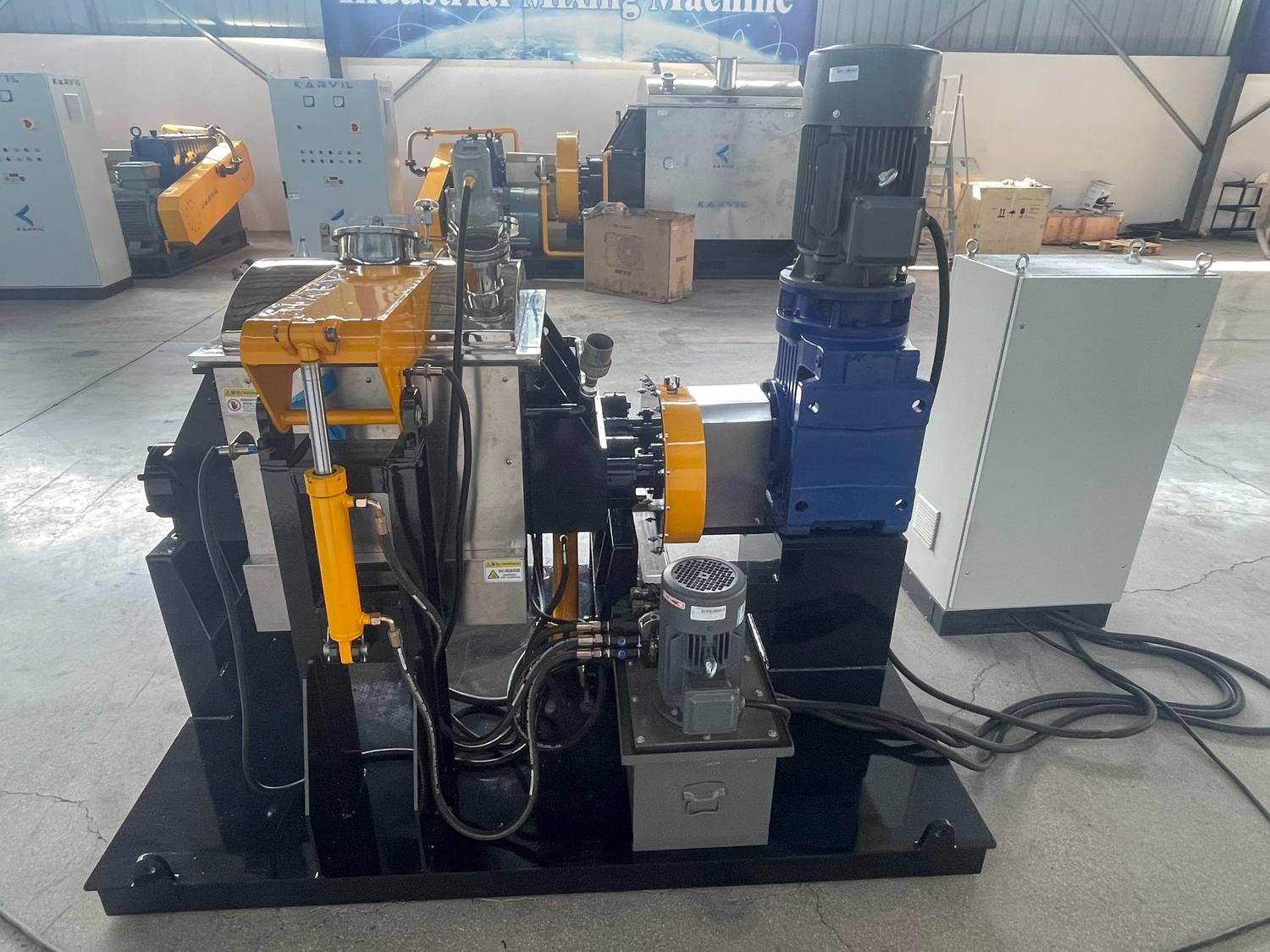

Discharge method can hydraulic tilting discharging or screw extrusion discharging or both of them.

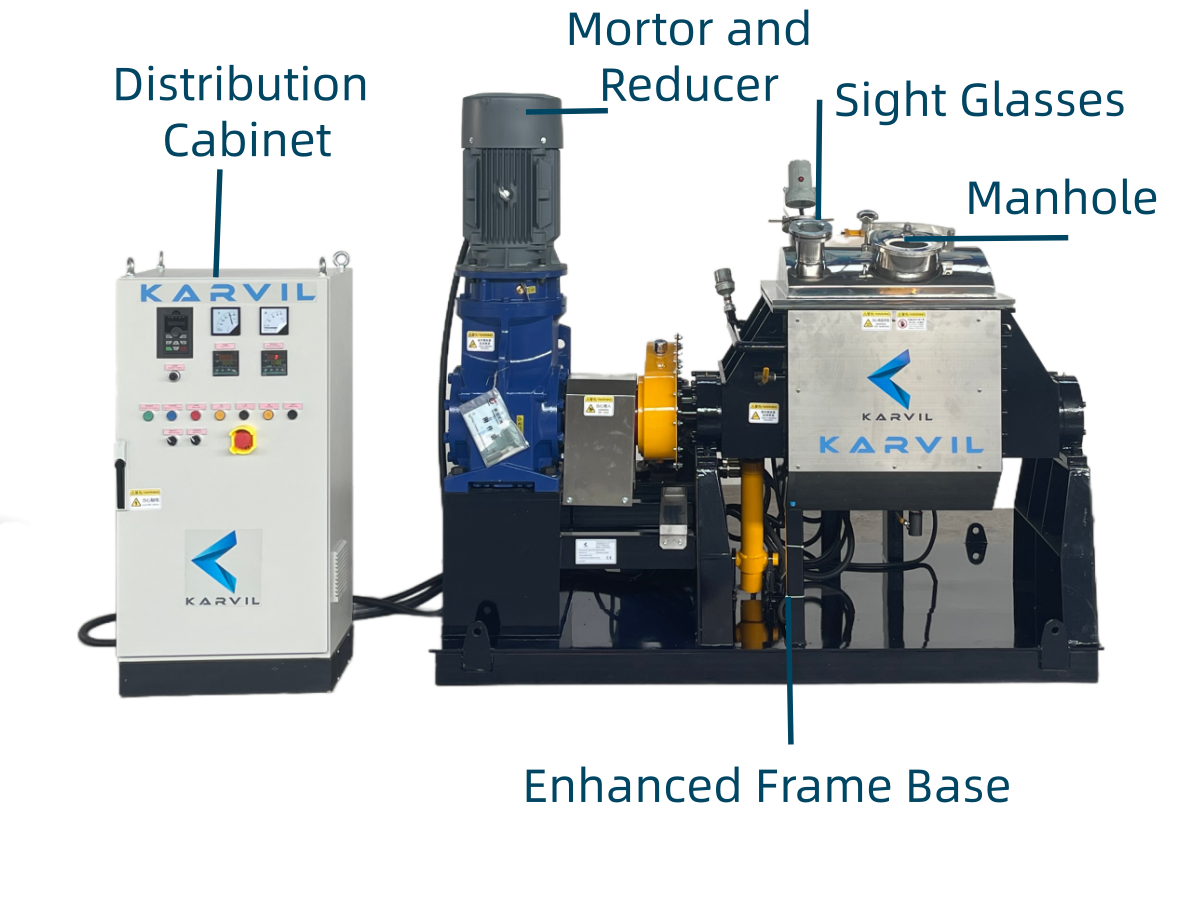

Independent Control Panel: Function control，Schneider electronic components，Circuit breaker protection，Voltage & current showed and etc.
Vacuum function( optional): it includes vacuum pump, metal hose, buffer tank and vacuum gauge. Vacuum degree can reach-0.096mpa
Heating function ( optional): Electric heating with far ultrared heaters or with jacket for heating transfer oil; Jacket for steam; Jacket for water circulation.
Cooling function( optional): Jacket for cooling water circulation or equipped together with a chiller.
Other customized function can be discussed.
Food-Grade SS316 Construction – mirror-polished for hygiene and easy cleaning
Efficient Mixing – sigma blades handle sticky, elastic, and high-viscosity materials
Hydraulic Tilting Discharge – ensures smooth and complete product release
Temperature Control – electric heating jacket keeps recipes consistent
Operator Safety – automatic stop when cover is lifted
Customizable Options – capacity, vacuum system, or PLC controls available
Technical Parameters
FAQ
Q1: Is this mixer suitable for food production?
Yes, all product-contact parts are made of SS316 stainless steel with mirror finish.
Q2: How is the material discharged?
Through a hydraulic tilting system, ensuring complete and easy emptying.
Q3: Can the temperature be controlled?
Yes, the electric heating jacket allows precise temperature adjustment.
Q4: Is it safe to operate?
Yes, the mixer stops immediately when the top cover is opened.
Q5: Can the mixer be customized?
Yes, options include vacuum design, PLC control, and different capacities.
