Volume: 2L
Drive Power: 1.1 kW-4 (Siemens Beide motor)

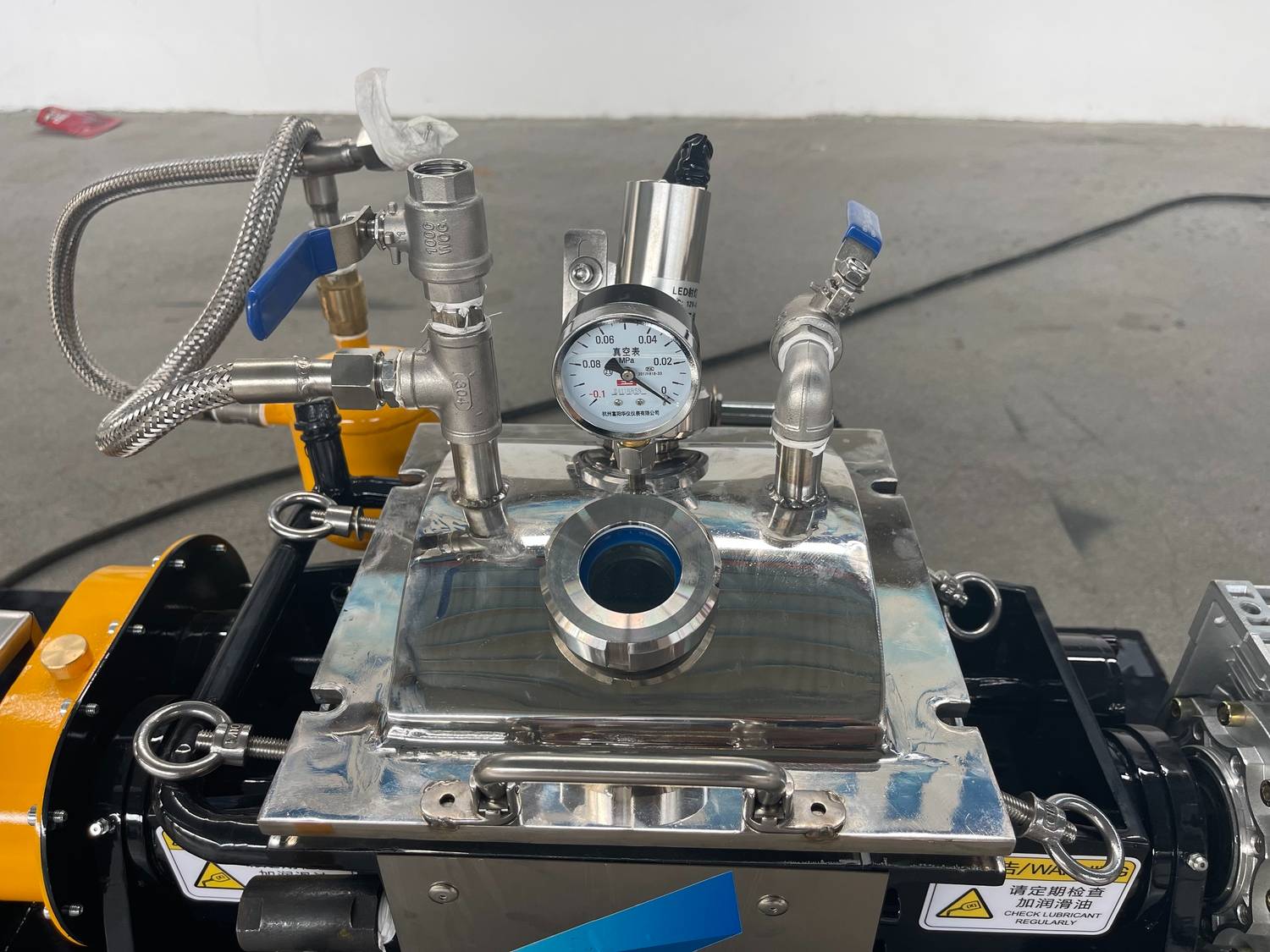

Vacuum Function: Vacuum valve with gauge, maximum vacuum -0.09 MPa (pump not included)
Safety Protection: Automatic stop when the cover is opened (safety interlock)
Mixing System: Dual sigma blades, contact parts in SS316 with mirror polish finish
Blade Speeds: 0–42 rpm (high), 0–35 rpm (low), controlled via frequency inverter
Heating Type: Electric heating with jacket for stable temperature control
Discharging: Manual tilting discharge, simple and reliable
| Quantity: | |
|---|---|
NH-2
Karvil
Customizable Design
Karvil supplied a 2-liter vacuum Z blade mixer to a Dutch client, specially built for mixing sticky and high-viscosity materials. This compact laboratory model integrates vacuum function, electric heating, and safe manual discharge in one unit.
The mixer is ideal for research labs, universities, and specialty material developers, handling products such as sealants, gums, adhesives, pastes, rubber, and silicone-based formulations.
With precise temperature regulation, high vacuum sealing, and stainless-steel construction, this 2L vacuum sigma kneader provides consistent results while saving space. Karvil Machinery has over 20 years of expertise in building custom kneading and mixing solutions for global clients.
Key Features
Perfect for laboratory & R&D use
SS316 mirror-polished contact parts
Electric heating jacket for controlled temperature
Safety cover switch for secure operation
♻ Easy cleaning & manual tilting discharge
Q1: What is the difference between a sigma mixer and a Z blade mixer?
A1: Both names refer to the same type of kneader. The blades have a Z or sigma shape, designed for mixing high-viscosity materials efficiently.
Q2: Can the 2L vacuum Z blade mixer be used in laboratories?
A2: Yes, this compact 2L model is ideal for laboratory research, pilot testing, and small-scale production of specialty materials.
Q3: What is the blade speed range?
A3: The blades run at two different speeds: fast (0–42 rpm) and slow (0–35 rpm), controlled by a frequency inverter for flexible mixing.
Q4: What material is used for the contact parts?
A4: All product contact parts are made of stainless steel 316 with mirror polish, ensuring durability, corrosion resistance, and easy cleaning.
Q5: What industries use this type of mixer?
A5: This kneader is widely applied in adhesives, silicone rubber, chewing gum, sealants, ceramic pastes, and other formulations that require vacuum mixing under controlled temperature.
Technical Parameters
Applications
