NH-100
Customizable Design
The material contact part can be SS304, SS316 with mirror polished or carbon steel. The rest part can also be stainless steel and mostly adopt carbon steel with automotive grade industrial paint
Sigma blades speed can be adjustable with inverter control; one is fast and another is slow.
Discharge method can hydraulic tilting discharging or screw extrusion discharging or both of them.
Independent Control Panel: Function control，Schneider electronic components，Circuit breaker protection，Voltage & current showed and etc.
Vacuum function( optional): it includes vacuum pump, metal hose, buffer tank and vacuum gauge. Vacuum degree can reach-0.096mpa
Heating function ( optional): Electric heating with far ultrared heaters or with jacket for heating transfer oil; Jacket for steam; Jacket for water circulation.
Cooling function( optional): Jacket for cooling water circulation or equipped together with a chiller.
Other customized function can be discussed.

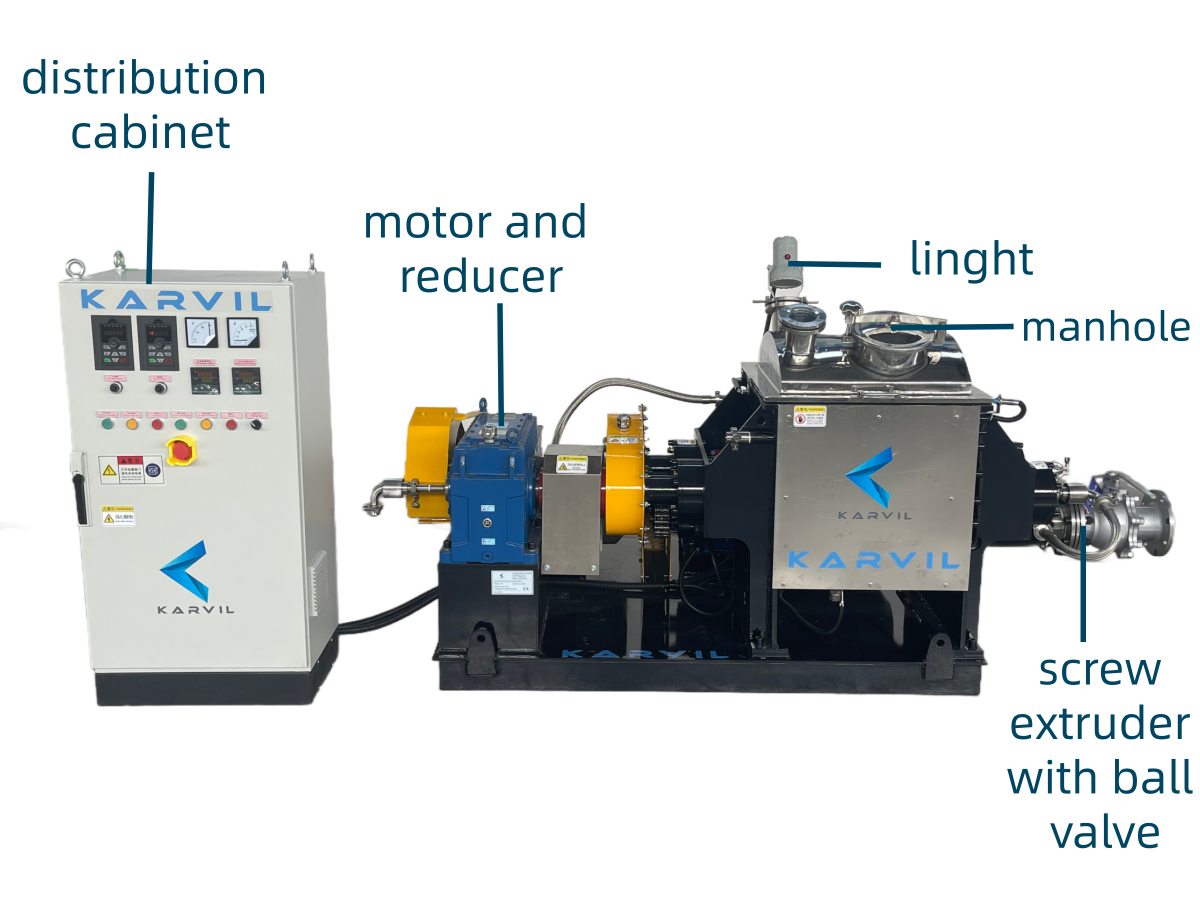

Industrial 100L capacity for consistent batch production.
15 kW Siemens motor + frequency inverter for flexible speed adjustment.
Dual sigma blades, mirror polished, designed for heavy-duty kneading.
Cooling jackets on shafts and discharge chamber to maintain process stability.

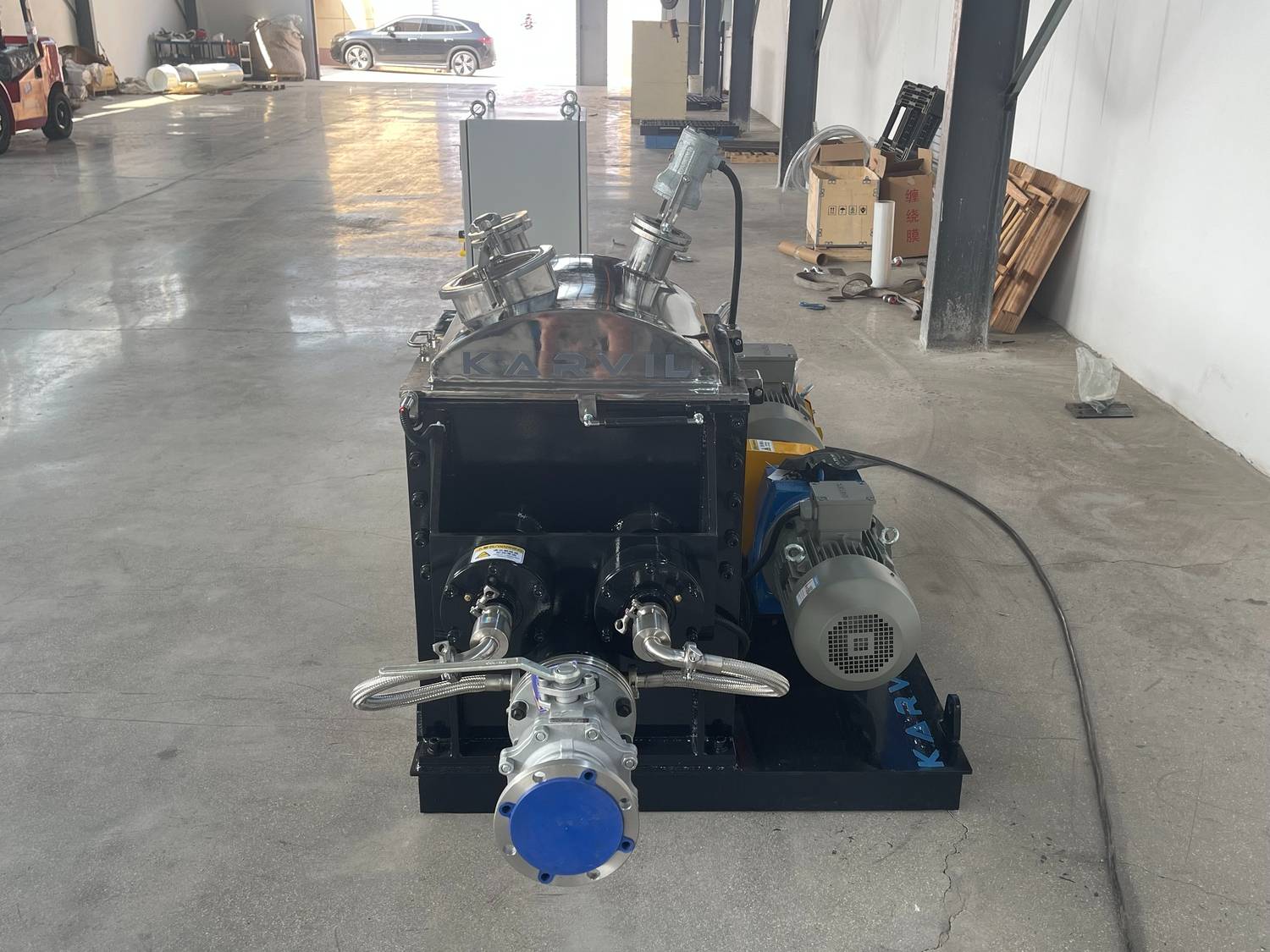

Screw extrusion discharge, Ø108 mm barrel with DN100 manual ball valve.
Hygienic build: SS304 mirror-polished contact parts, external carbon steel frame.
Inspection & safety: DN200 manhole, two sight glasses (one with light), and safety interlocks.
Technical Parameters
Why Chosse Karvil Sigma Mixer
FAQ
Q1: Can this kneader be customized for different materials?
A1: Yes, Karvil can adapt blade shape, discharge system, and cooling design for different processes.
Q2: What are the benefits of screw discharge?
A2: Screw extrusion provides smooth, continuous, and controlled discharge, especially useful for sticky or dense products.
Q3: Is this equipment suitable for food-grade materials?
A3: Yes, all product-contact parts are SS304 stainless steel, mirror polished to ensure hygiene.
Q4: How is temperature regulated during operation?
A4: Cooling jackets on the shafts and screw barrel allow precise water circulation, preventing overheating.
