Volume: 100 liters
Drive Motor: 11 kW, 4-pole Siemens motor
Speed Control: Variable frequency drive (VFD), 0–37 rpm (main shaft), 0–22 rpm (secondary shaft)

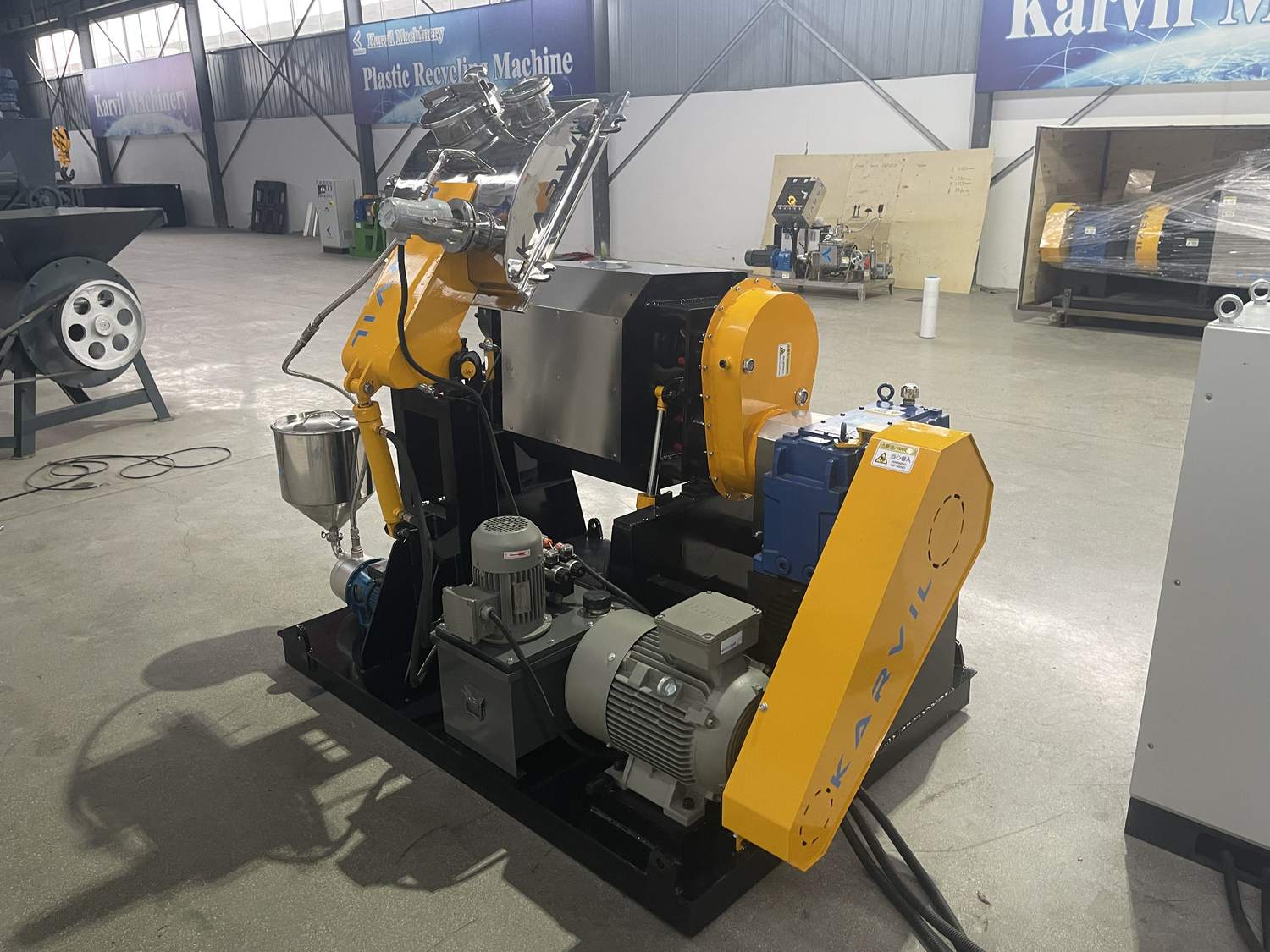

Discharge: Hydraulic tilting system, driven by 1.1 kW Siemens hydraulic motor

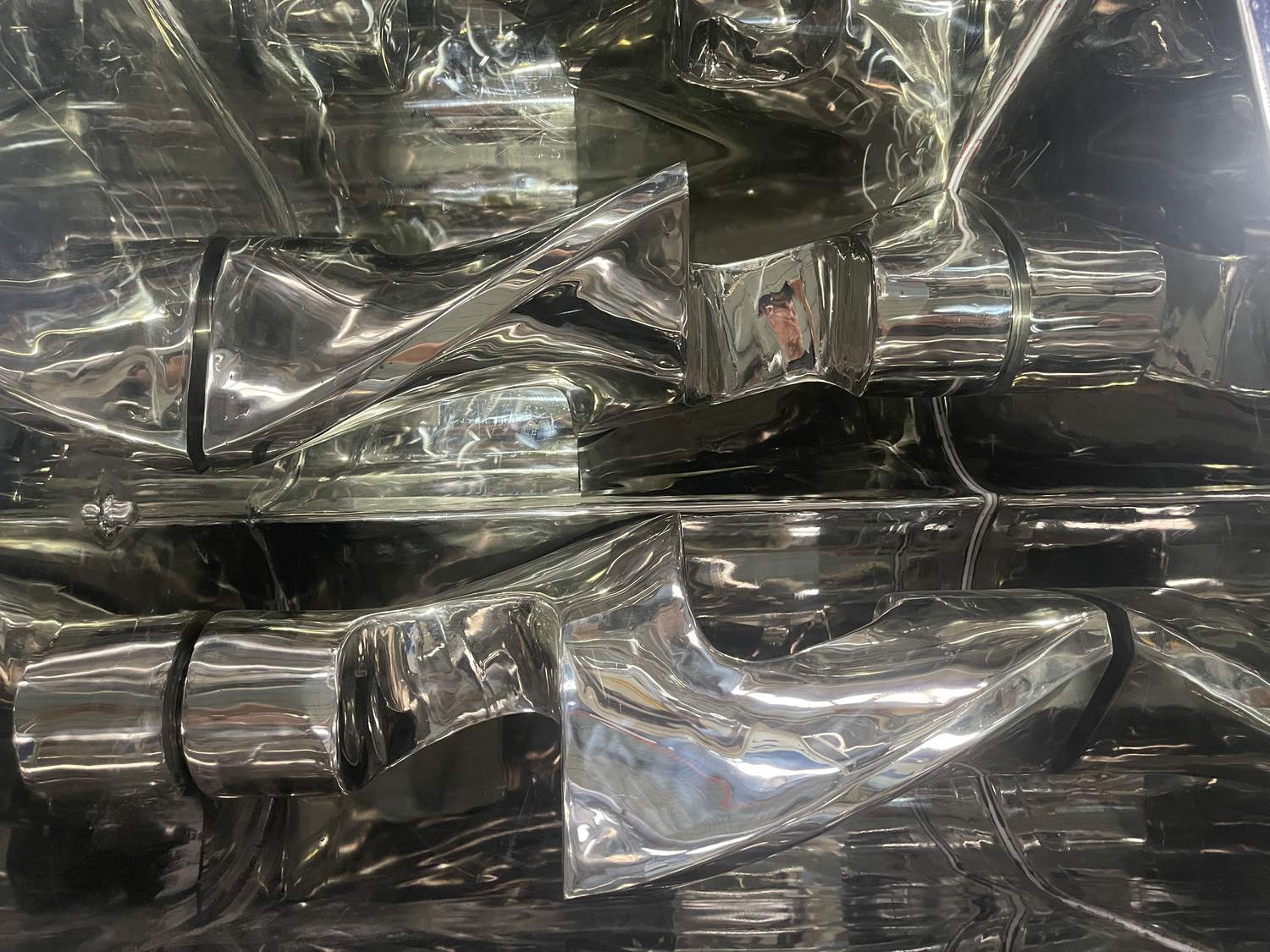

Material Contact Parts: Stainless steel 304 with mirror-polished interior

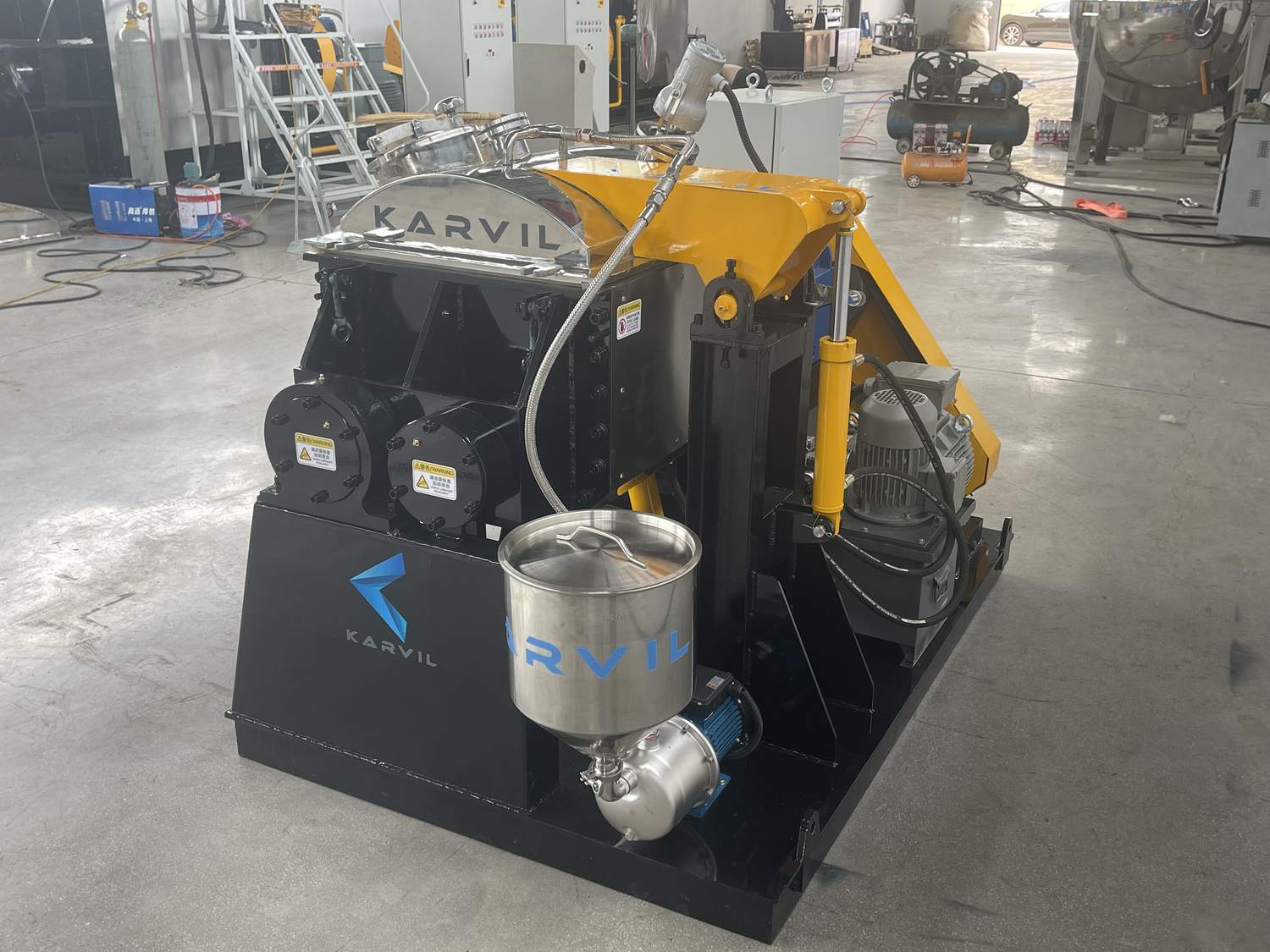

Spray Pump: 1.1 kW integrated spray pump with 20L covered hopper
| Quantity: | |
|---|---|
NH-100

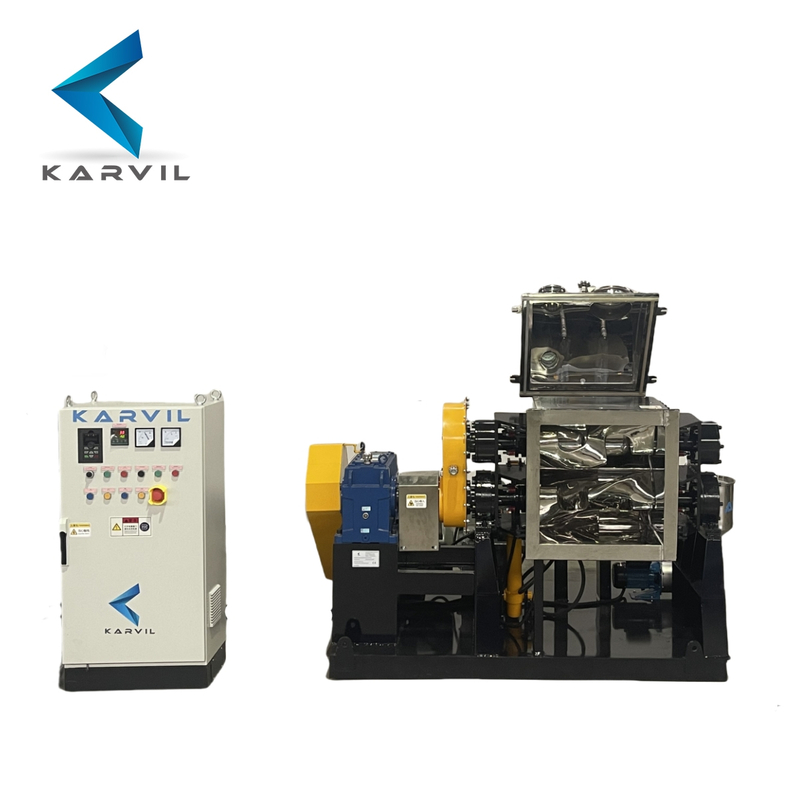

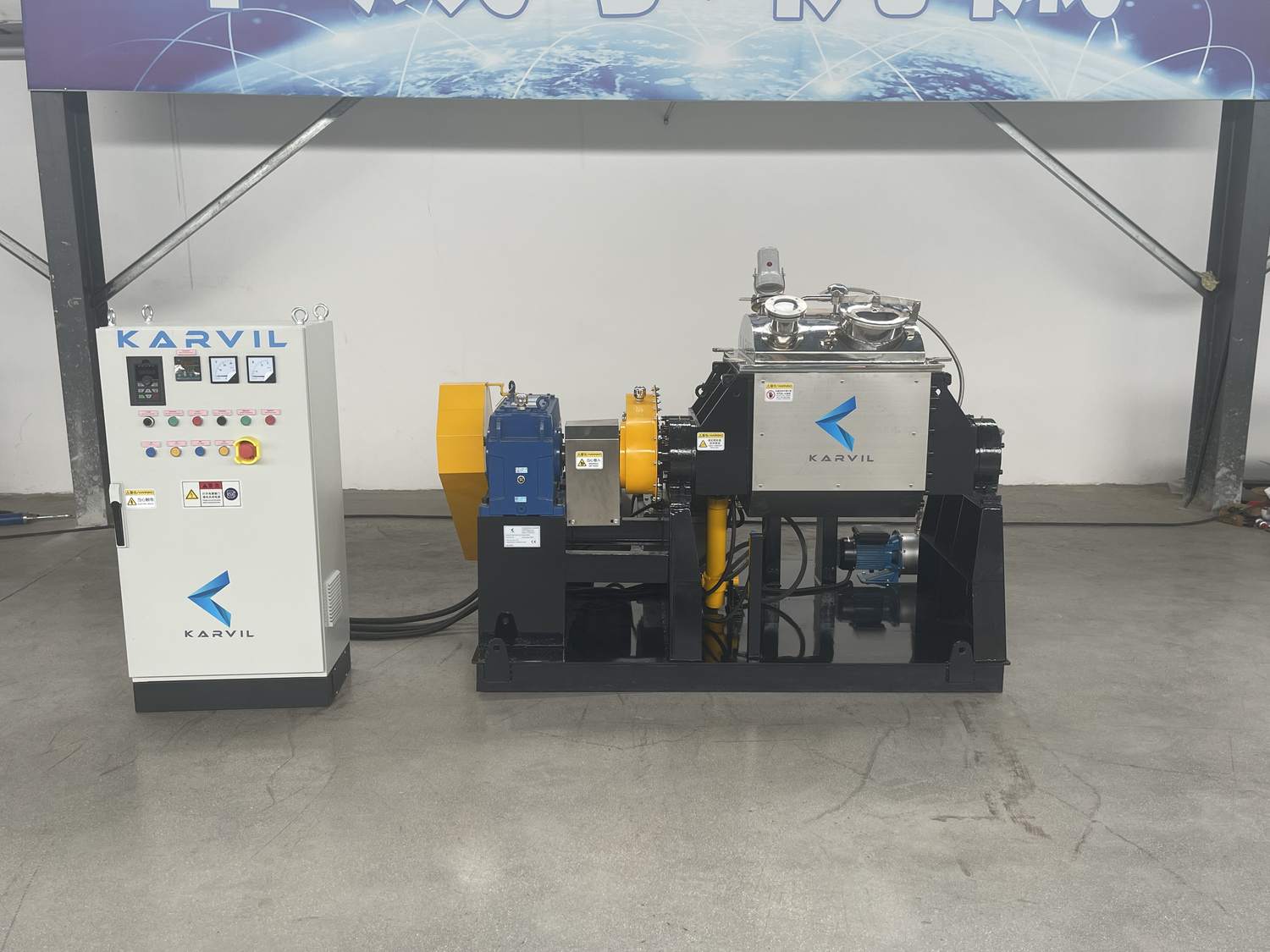

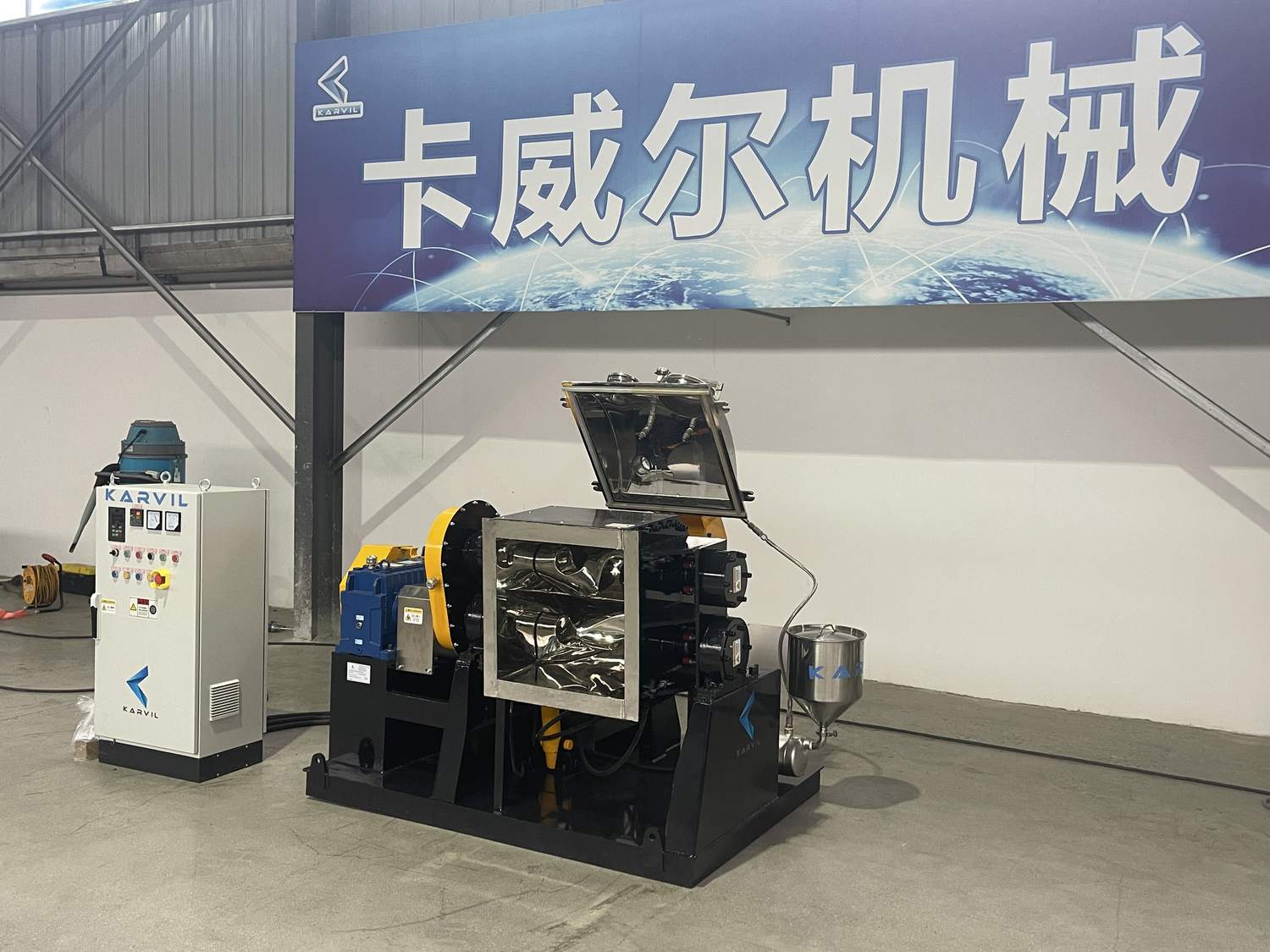

Z Blade Mixer with Spraying System
This 100L Z blade mixer, custom-built for a Canadian ceramics manufacturer, is engineered for turning dry ceramic powders into homogenous slurry by blending them with water and binding agents. It features precise mixing control, integrated spraying, and convenient discharge, making it well-suited for high-viscosity material processing.
Technical Parameters
Customizable Design
The material contact part can be SS304, SS316 with mirror polished or carbon steel. The rest part can also be stainless steel and mostly adopt carbon steel with automotive grade industrial paint
Sigma blades speed can be adjustable with inverter control; one is fast and another is slow.
Discharge method can hydraulic tilting discharging or screw extrusion discharging or both of them.

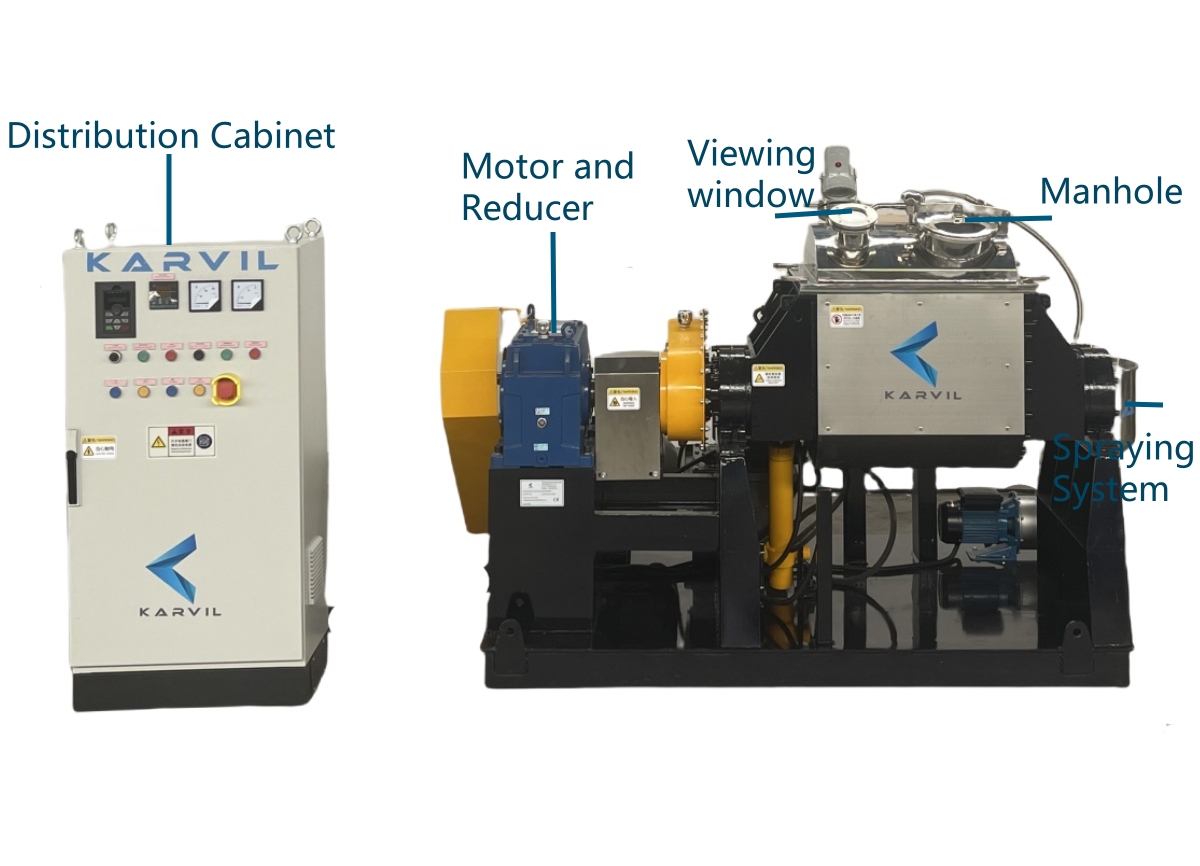

Independent Control Panel: Function control，Schneider electronic components，Circuit breaker protection，Voltage & current showed and etc.
Vacuum function( optional): it includes vacuum pump, metal hose, buffer tank and vacuum gauge. Vacuum degree can reach-0.096mpa
Heating function ( optional): Electric heating with far ultrared heaters or with jacket for heating transfer oil; Jacket for steam; Jacket for water circulation.
Cooling function( optional): Jacket for cooling water circulation or equipped together with a chiller.
Other customized function can be discussed.
