Lab Sigma Mixer with Screw Discharge

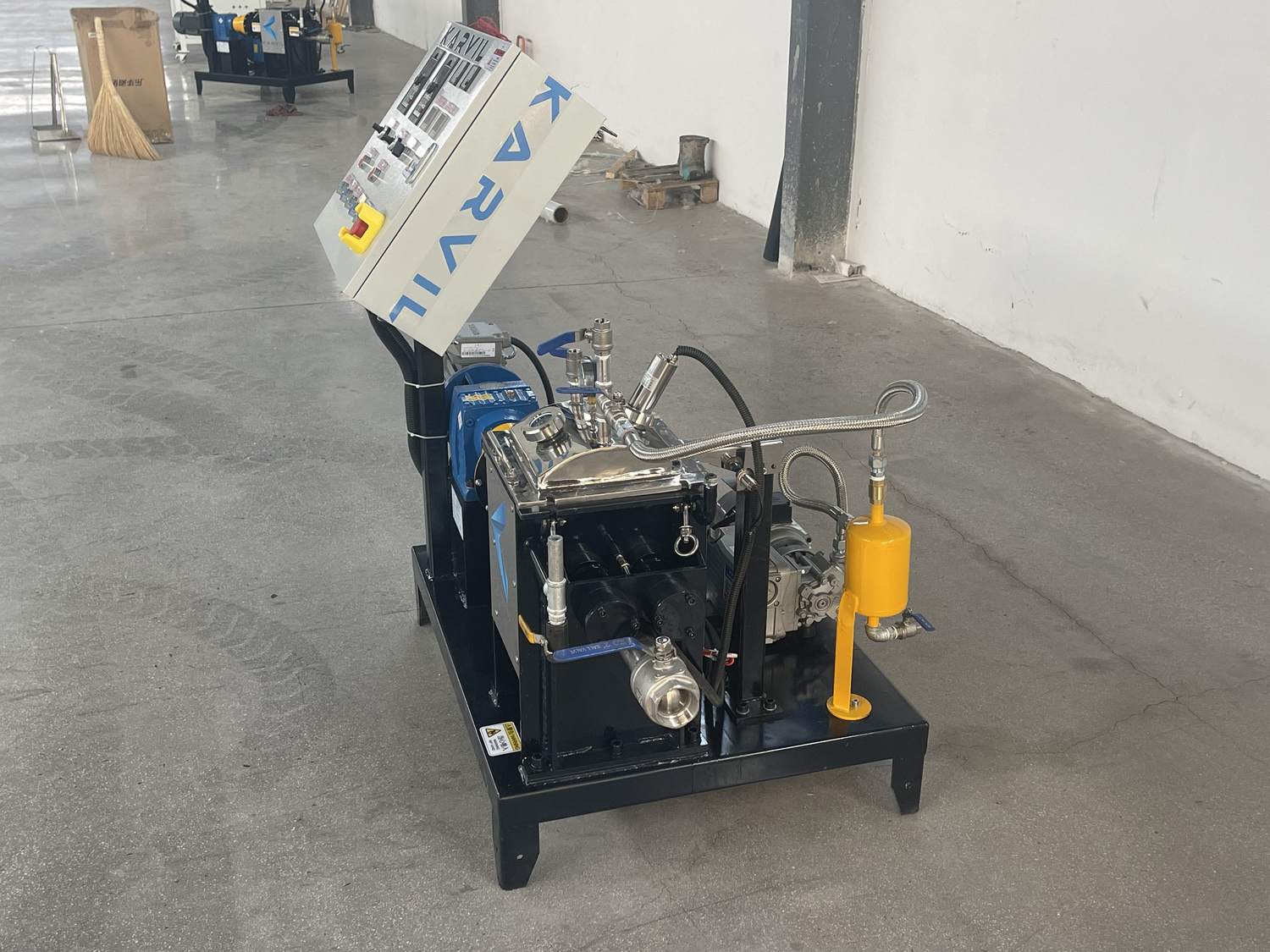

5L lab Vacuum Sigma Mixer is designed for mixing high-viscosity polymer materials under vacuum and controlled temperature conditions. This unit has been successfully exported to customer, where it is used in the production of custom high-viscosity formulations requiring accurate thermal control, vacuum environment, and efficient discharge through a screw extruder.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • NH-5

  • Karvil

Customizable Design

  • The material contact part can be SS304, SS316 with mirror polished or carbon steel. The rest part can also be stainless steel and mostly adopt carbon steel with automotive grade industrial paint

  • Sigma blades speed can be adjustable with inverter control; one is fast and another is slow.

  • Discharge method can hydraulic tilting discharging or screw extrusion discharging or both of them.

  • Independent Control Panel: Function control,Schneider electronic components,Circuit breaker protection,Voltage & current showed and etc.

  • Vacuum function( optional): it includes vacuum pump, metal hose, buffer tank and vacuum gauge. Vacuum degree can reach-0.096mpa

  • Heating function ( optional): Electric heating with far ultrared heaters or with jacket for heating transfer oil; Jacket for steam; Jacket for water circulation.

  • Cooling function( optional): Jacket for cooling water circulation or equipped together with a chiller.

  • Other customized function can be discussed.

Sigma-Mixer-with-Cooling-Jacket (5)

Core Features

⚙️ Mixing & Structure

  • Total Capacity: 5 Liters

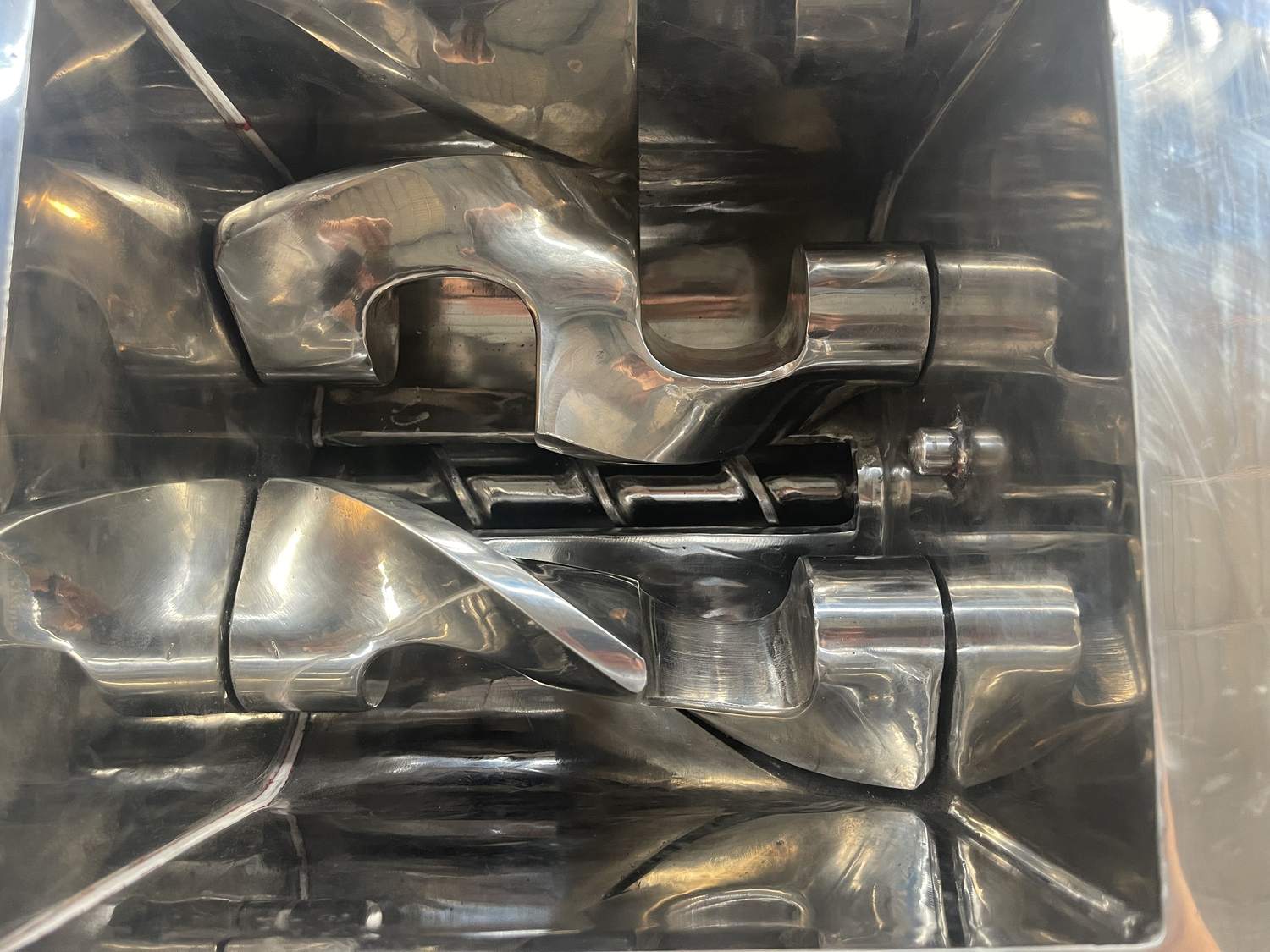

  • Mixing Blades: Dual Z-type sigma blades

  • Motor: Siemens 1.5 kW, 4-pole for steady power transmission

  • Contact Material: SS304 stainless steel, mirror-polished

  • Frame Structure: Non-contact areas made of carbon steel

Heating System

  • Heating Type: Electric thermal oil jacket

  • Temperature Range: Up to 250°C, providing stable and uniform heat for heat-sensitive polymers

Discharge & Observation

  • Discharge Method: Horizontal screw extrusion for thick and sticky materials

  • Lid Operation: Manual open/close

  • Viewing Windows: 2 pcs, one with integrated LED light for in-process visibility

  • Valves:

    • 1 × DN15 Vacuum Valve

    • 1 × DN15 Nitrogen Valve

  • Nitrogen Pressure: Rated at 0.02 MPa for inert atmosphere and safety

Vacuum System

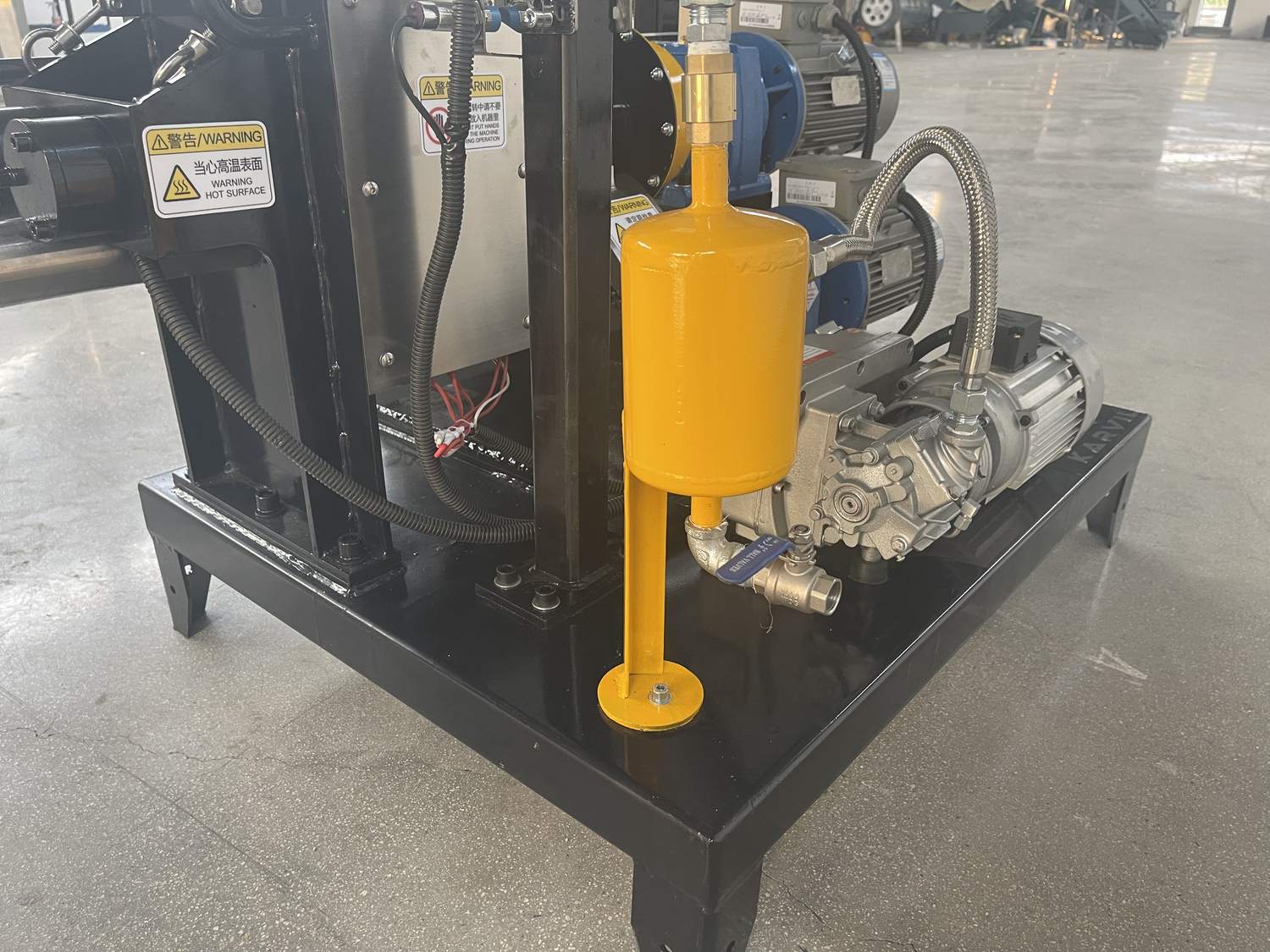

  • Vacuum pump + buffer tank + metal flexible pipe

  • Vacuum level: -0.09 MPa

  • Equipped with vacuum and pressure gauges


Technical Parameters

sigma-mixer-karvil-machinery


Applications

  • High-viscosity polymers and resin compounds

  • Silicone sealants and adhesives

  • Heat-curable pastes

  • Specialty elastomers

  • Thermosetting materials

  • Pilot-scale formulation development


Why Choose Karvil?

Karvil Machinery is an expert manufacturer of industrial sigma mixers and high-viscosity processing equipment. We serve clients worldwide in polymer processing, battery materials, adhesives, and more. Our solutions are custom-engineered to meet your application’s mixing, vacuum, heating, and discharge requirements.


Request a quote, 3D drawing, or application consultation – we’re here to support your process.


Application Industry

  • Chemicals: Ideal for mixing rubber compounds, adhesives, resins, sealants, silicone rubber, and other high-viscosity chemical compounds. They enable consistent blending of ingredients in chemical manufacturing.

  • Carbon Industry: Used in the mixing of carbon compounds for the production of carbon paste used in electrodes or in carbon-related manufacturing processes.

  • Adhesives and Sealants: Vital in the production of adhesives and sealants where combining different ingredients to achieve specific properties is crucial.

  • Pharmaceuticals: Utilized for blending powders, granules, and pastes in the production of pharmaceuticals, vitamins, supplements, and medicinal creams. Sigma mixers ensure uniform distribution of ingredients.

  • Plastics and Polymers: Used for compounding, mixing additives, colorants, fillers, and other materials in the production of plastics, rubber products, and polymer-based compounds.
