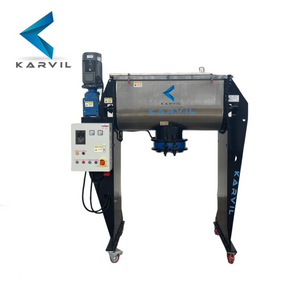

U Shaped Powder Mixer

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • WLDH-1500

Customizable Design

  • The mixer can be made with all stainless steel or materials contact part with stainless steel or all carbon steel.

  • Interior Surfaces: Mirror polished.

  • Discharge: Manual valve or pneumatic valve.

  • Safety device:Safety grid on the cylinder. Emergency stop device when the lid is open while the safety grip is not on the cylinder

  • Heating function ( optional): Electric heating with jacket for heating transfer oil; Jacket for steam; Jacket for water circulation.

  • Cooling function( optional): Jacket for cooling water circulation or equipped together with a chiller.

  • Vacuum function( optional): it includes vacuum pump, metal hose, buffer tank and vacuum gauge. Vacuum degree can reach-0.096mpa.

  • Other customized function can be discussed.


图片30图片31


Technical Parameters


Application Industry

Horizontal ribbon mixer is used for powder and powder mixing, powder with a small amount of liquid mixing, suitable for food, building, chemical, agricultural and other industries, such as food powder, dry mortar powder, fertilizer, seeds, spices, coffee powder, etc


How does a ribbon mixer work?

The ribbon blender is the double spiral. The outer spiral belt pushes inward and the inner spiral belt pushes outward so that the materials form convection & tumble motion to insure thorough mixing homogeneity in short cycle times to achieve the purpose of fast and uniform stirring. When discharging the materials, the outer ribbons move the materials toward the center discharge valve.

Features

Customizable Design: Ribbon mixers come in different sizes and configurations to accommodate varying batch sizes and production needs. They can be designed for batch mixing or continuous mixing, depending on the application.


Optional Features: Many ribbon mixers can be equipped with additional features, such as heating or cooling jackets in the mixing chamber, spray nozzles for the controlled addition of liquids, and safety mechanisms like interlocks and safety guards.


Ease of Cleaning: Ribbon mixers are designed for easy cleaning and maintenance. They often feature quick-access doors and removable agitators, making it straightforward to clean and prevent cross-contamination between batches.


Durability: These mixers are typically built to withstand the demands of industrial use. They feature robust construction and materials capable of handling abrasive or corrosive materials.


Safety Features: Many ribbon mixers include safety features such as interlocking mechanisms, emergency stop buttons, and protective guards to ensure operator safety during operation.
