Regarding mixing equipment in the industrial world, especially in rubber, plastics, chemicals, and adhesives, two heavy-duty machines often come into discussion: the Banbury mixer and the Sigma mixer. Although both are powerful in handling high-viscosity materials, they are designed for different applications and working principles. Understanding their differences can help manufacturers choose the right equipment for their production needs.



What is a Banbury Mixer?

The Banbury mixer is an internal batch mixer primarily used in the rubber and plastics industries. Developed in the early 20th century by Fernley H. Banbury, this machine revolutionized the rubber compounding process.

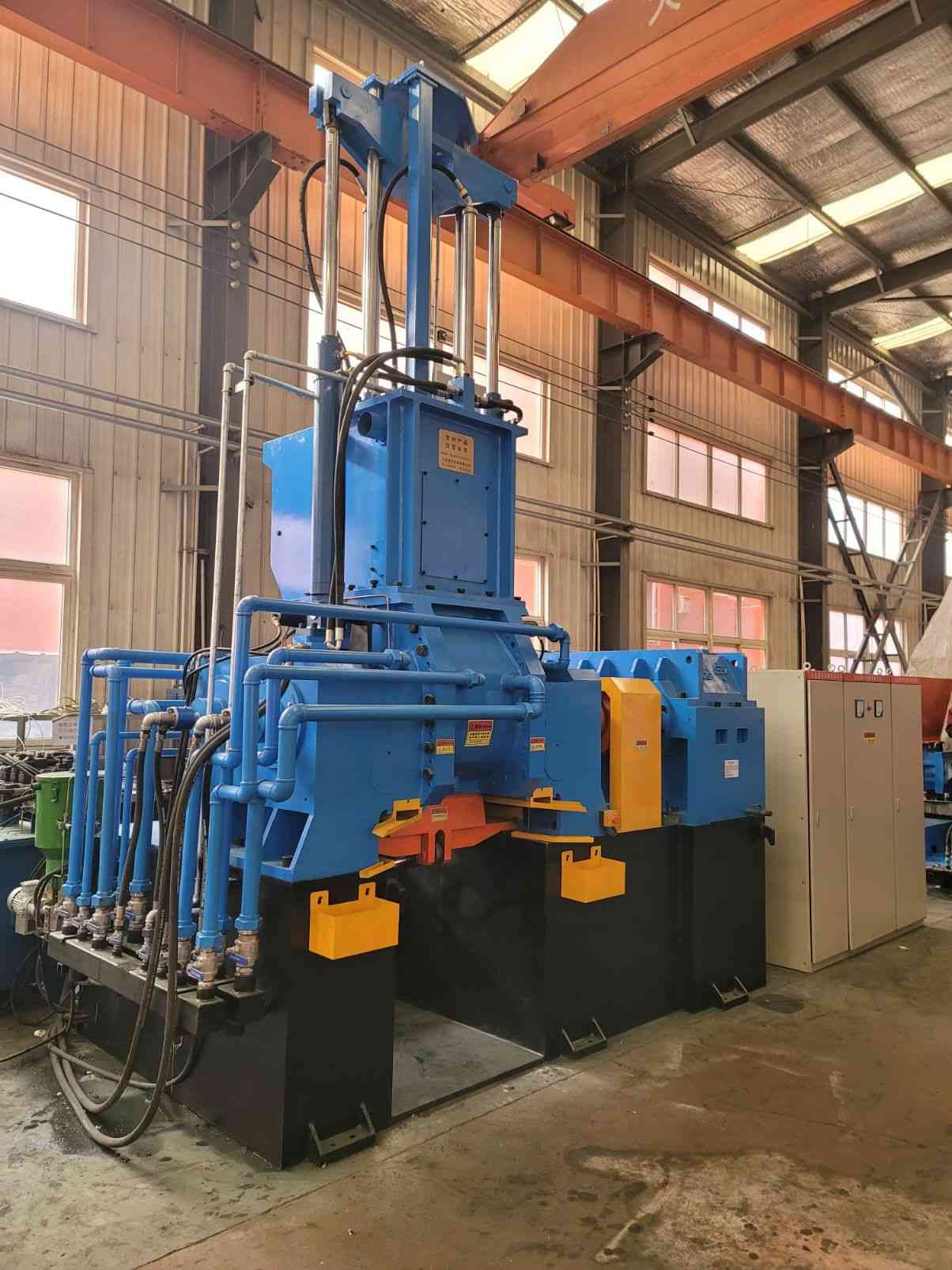

Banbury Mixer

Key features:

  • Uses two rotors inside a closed chamber.

  • Applies high shear force and intensive kneading, making it ideal for dispersing fillers and breaking down rubber.

  • Equipped with hydraulic or pneumatic rams that press material into the mixing zone.

  • Commonly used for rubber compounding, plastics, and tire production.



What is a Sigma Mixer?

The Sigma mixer, also known as a kneader mixer, is widely used in industries requiring the processing of high-viscosity, pasty, or dough-like materials. At Karvil Machinery, we have been dedicated to the development and manufacturing of Sigma mixers for over 20 years, exporting to more than 50 countries worldwide.

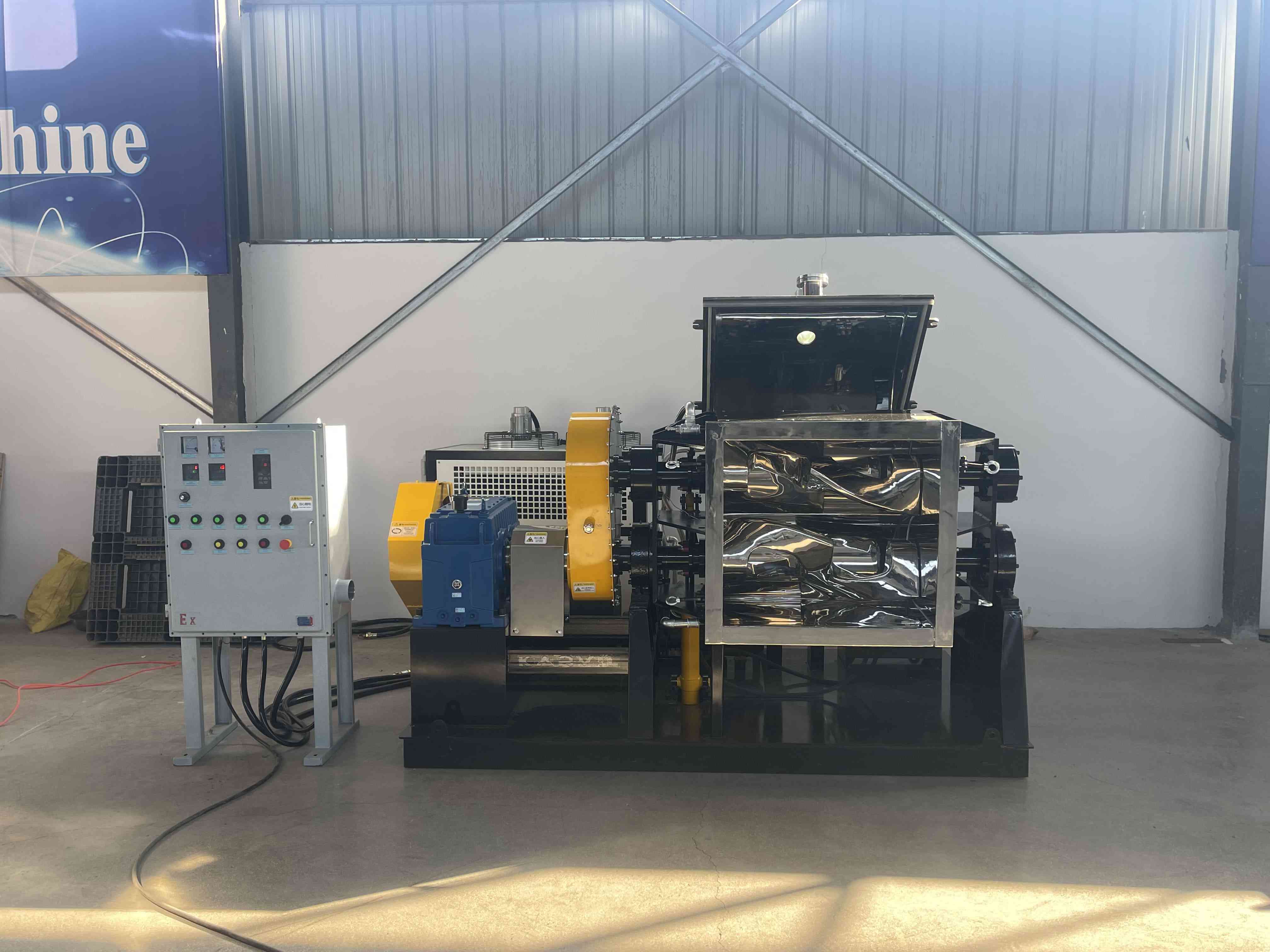

300L-Double-Sigma-Blade-Titling-Kneader-Mixer (3)

Key features:

  • Contains two intermeshing Z-shaped (sigma) blades in a U-shaped trough.

  • Operates at different speeds (non-synchronous), allowing efficient shearing and folding of materials.

  • Ideal for adhesives, sealants, chewing gum, ceramic pastes, and putty.

  • Available in tilting, extrusion, or bottom discharge designs to suit various production processes.

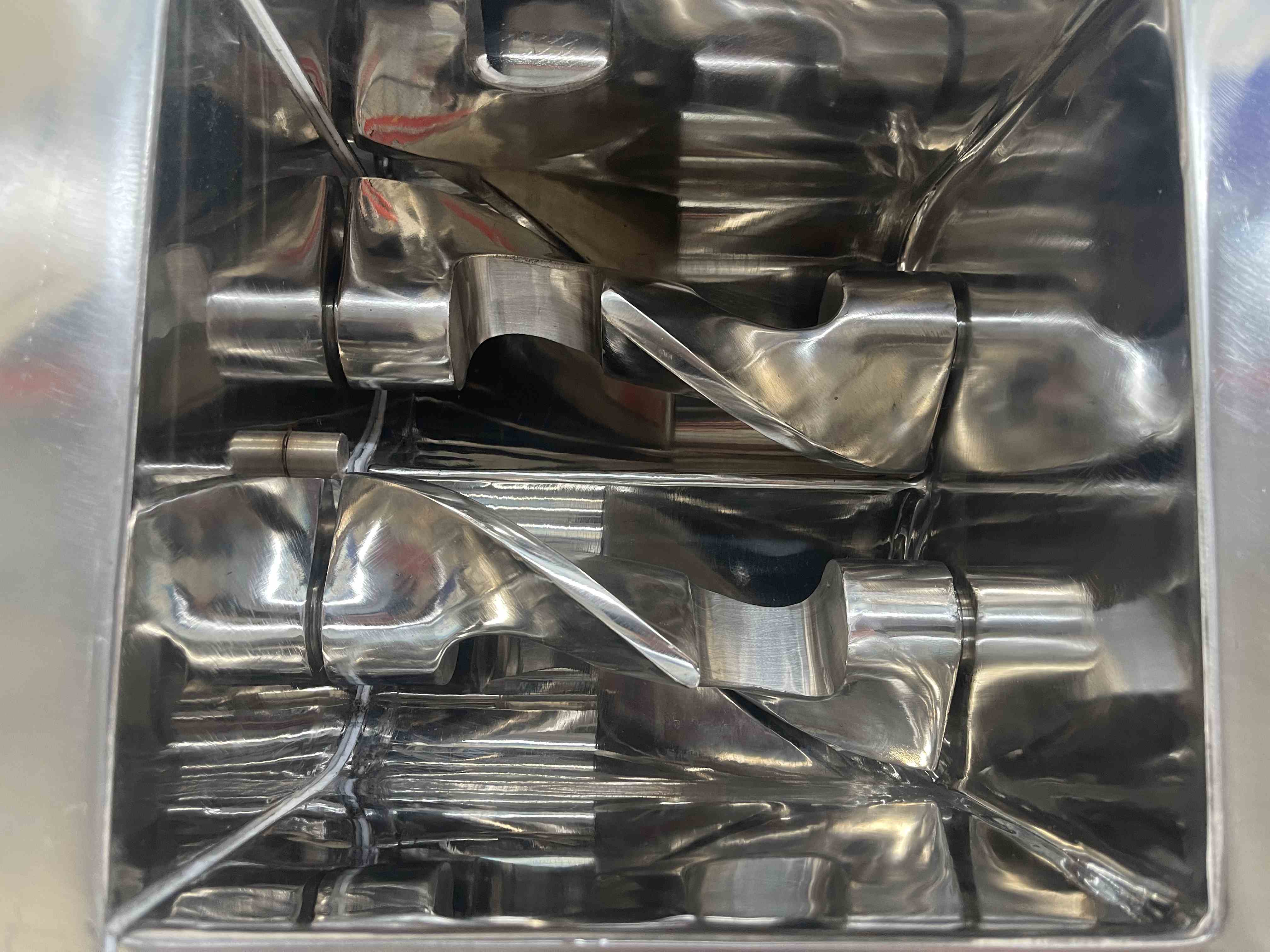

Sigma-Mixer-for-Silicone-Rubber (2)


Differences Between Banbury Mixer and Sigma Mixer

Feature Banbury Mixer Sigma Mixer
Application Industry Rubber, Plastics Chemicals, Food, Pharmaceuticals, Adhesives
Mixing Mechanism Twin rotors in closed chamber Twin sigma blades in open trough
Shear Force High Moderate to High
Material Type Solid-to-solid, rubber, polymer pellets Doughy, pasty, high-viscosity fluids
Discharge Type Bottom discharge or tilting Tilting or screw extrusion


Which One Should You Choose?

If you are working with rubber, elastomers, or require high-temperature, high-shear mixing, the Banbury mixer is your go-to.

If your process involves viscous pastes, adhesives, gums, or specialty chemicals, a Sigma mixer will deliver better performance and efficiency.


Why Choose Karvil Machinery?

At Karvil Machinery, we bring over two decades of experience in the design and manufacturing of Sigma mixers. Our equipment is:

  • Built with robust stainless steel or carbon steel structures.

  • Customizable for vacuum, heating/cooling jackets, automatic discharge, and more.

  • Backed by global service and exported to over 50 countries.


Whether you're expanding your production line or upgrading your mixing technology, Karvil's Sigma mixers are engineered for reliability, efficiency, and long-term performance.

Looking for customized mixing solutions? Contact us to learn more!
